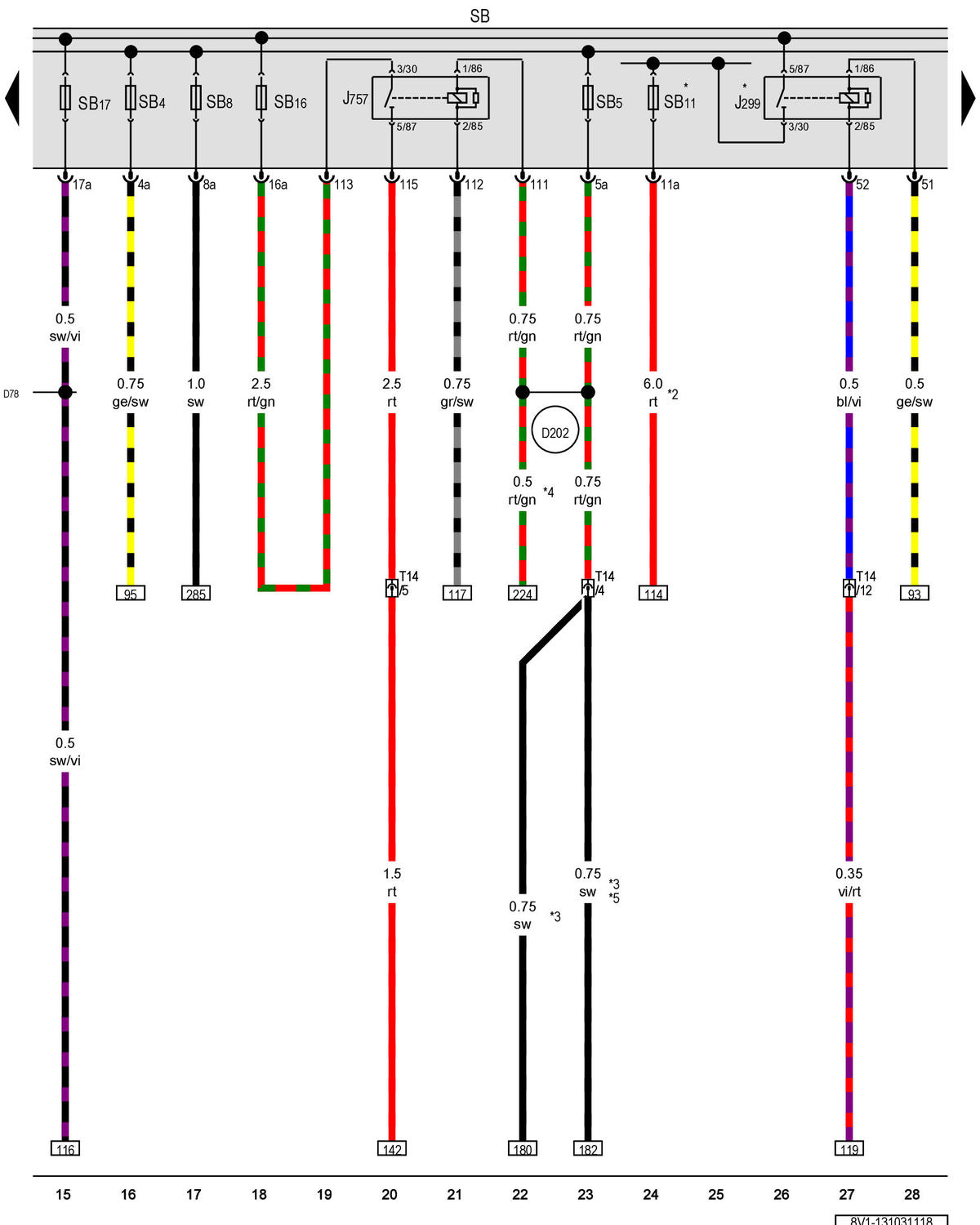

Secondary Air Injection Pump Relay, Engine Component Power Supply Relay, Fuse 8 (On Fuse Panel B)

Courtesy of AUDI OF AMERICA, LLC

J299

Secondary Air Injection Pump Relay Type:BT, Slpdok:, Aim:BTJ299

J757

Engine Component Power Supply Relay Type:BT, Slpdok:, Aim:BTJ757

Fuse Panel B Type:BT, Slpdok:, Aim:BTSB-

SB4

Fuse 4 (On Fuse Panel B) Type:BT, Slpdok:, Aim:BTSB-

SB5

Fuse 5 (On Fuse Panel B) Type:BT, Slpdok:, Aim:BTSB-

SB8

Fuse 8 (On Fuse Panel B) Type:BT, Slpdok:, Aim:BTSB-

SB11

Fuse 11 (On Fuse Panel B) Type:BT, Slpdok:, Aim:BTSB-

SB16

Fuse 16 (On Fuse Panel B) Type:BT, Slpdok:, Aim:BTSB-

SB17

Fuse 17 (On Fuse Panel B) Type:BT, Slpdok:, Aim:BTSB-

T14

14-Pin Connector, Gray Type:BT, Slpdok:, Aim:BTT14

D78

Positive Connection 1 (30a) (in Engine/Motor Compartment Wiring Harness)

D202

Connection 6 (87A) (in Engine/Motor Compartment Wiring Harness)

For Vehicles with US Equipment

Diameter Depends on Equipment

Depending on Equipment

Omitted as a Running Change

For Vehicles Without US Equipment
