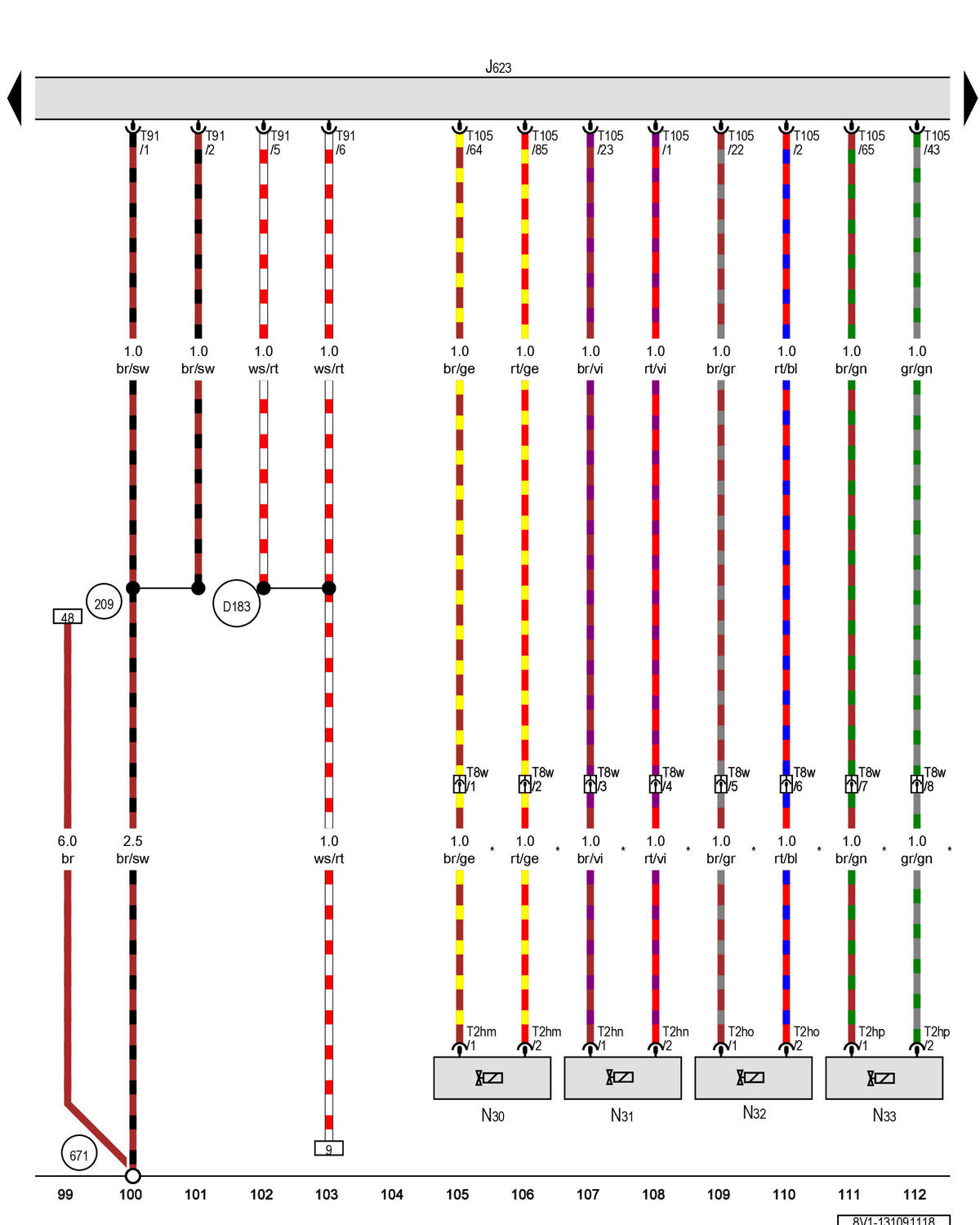

Engine/Motor Control Module, Cylinder 1 Fuel Injector, Cylinder 2 Fuel Injector, Cylinder 3 Fuel Injector, Cylinder 4 Fuel Injector
J623
Engine/Motor Control Module Type:BT, Slpdok:, Aim:BTJ623
N30
Cylinder 1 Fuel Injector Type:BT, Slpdok:, Aim:BTN30
N31
Cylinder 2 Fuel Injector Type:BT, Slpdok:, Aim:BTN31
N32
Cylinder 3 Fuel Injector Type:BT, Slpdok:, Aim:BTN32
N33
Cylinder 4 Fuel Injector Type:BT, Slpdok:, Aim:BTN33
T2hm
2-Pin Connector, Black
T2hn
2-Pin Connector, Black
T2ho
2-Pin Connector, Black
T2hp
2-Pin Connector, Black
T8w
8-Pin Connector, Black
T91
91-Pin Connector, Black
T105
105-Pin Connector, Black
209
Ground Connection 6 (in Engine/Motor Compartment Wiring Harness)
671
Ground Connection 1 on Left Front Longitudinal Member Type:VB, Slpdok:, Aim:VB671
D183
Connection 4 (87A) (in Engine/Motor Compartment Wiring Harness)
*
The Color of the Wires Depends on Vehicle Equipment
