Night Vision System Camera -R212- Mount, Removing And Installing: Removing

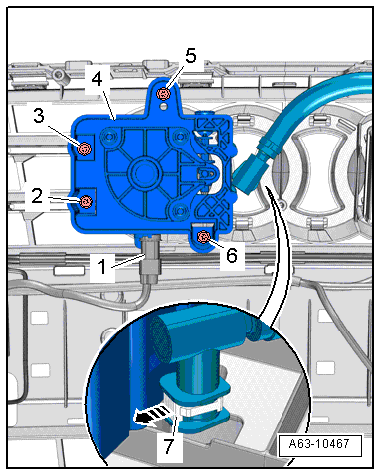

Fig 1: Identifying Connector, Screws, Mount, Clamp And Windshield Washer Fluid Hose

Courtesy of AUDI OF AMERICA, LLC

-- Remove the lock carrier cover. Refer to Removing .

-- Disconnect the connector -1-.

-- Remove the screws -2, 3, 5 and 6- and then remove the mount -4- with the Night Vision System Camera -R212-.

-- Open the clamp -arrow- and remove the windshield washer fluid hose -7-.

-- If the mount is replaced, remove the Night Vision System Camera - R212-. Refer to NIGHT VISION SYSTEM CAMERA, REMOVING AND INSTALLING .
