Input Shaft, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2016 Audi A4, 2015 Audi A4, 2014 Audi A4, 2013 Audi A4, and 2012 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Refer to REPAIR INFORMATION .

Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .

Transmission removed and mounted vertically to the engine/transmission holder. Refer to SECURING ON ENGINE AND TRANSMISSION HOLDER .
Adapting the Pressure Stand T40099 for the Multitronic 0AW Front Wheel Drive (FWD). Refer to Pressure Stand T40099, ADAPTING TO MULTITRONIC 0AW FRONT WHEEL DRIVE (FWD) .

-- Drain the Automatic Transmission Fluid (ATF), refer to AUTOMATIC TRANSMISSION FLUID (ATF), DRAINING FOR AUTOMATIC TRANSMISSION FLUID FLUSH , pivot transmission in installation position (level).

NOTE:

Transmission must not be turned so that flange points downward.

-- Mark the installed position of the cover for the input shaft with color -arrows-.

Fig 1: Insert Input Shaft And Cover Into Transmission Housing And Align It With Markings -Arrows- Made Earlier During Removal

Courtesy of AUDI OF AMERICA, LLC

-- Remove the circlip -1-.

Fig 2: Identifying Circlip

Courtesy of AUDI OF AMERICA, LLC

NOTE:

There are two different versions of circlips.

The current circlips do not have a groove and can only be removed using a screwdriver.

-- Mount the Puller - Input Shaft T40050 on the input shaft.

Fig 3: Mount T40050 On Input Shaft

Courtesy of AUDI OF AMERICA, LLC

-- Make sure the puller is secure on the input shaft.

Circlip must be pushed all the way down.

-- Pull the input shaft together with the cover and forward gear clutch out of the transmission housing -arrow- using Shop Crane VAS6100 with Puller - Input Shaft T40050.

NOTE:

It is very difficult to loosen the input shaft cover from the transmission housing. Pre-tension the input shaft with Shop Crane VAS6100 and then carefully hit transmission housing flange with a plastic hammer with a piece of wood placed in between until the cover comes loose.

Fig 4: Identifying Input Shaft Cover

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

If the oil pipe is damaged, starting problems or a transmission malfunction will result.

The input shaft may not be placed on the protruding oil pipe -arrow-.

-- Place the input shaft on the Pressure Stand T40099.

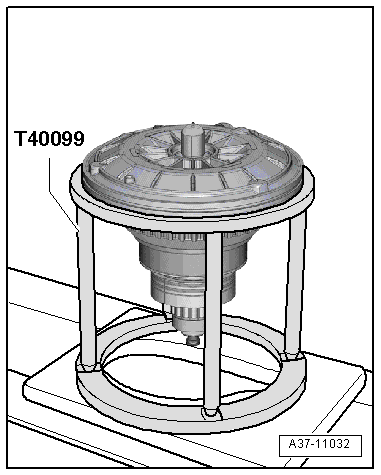

Fig 5: Placing Input Shaft On T40099

Courtesy of AUDI OF AMERICA, LLC
