Underbody Panels Overview, Convertible

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

The figure shows the left side. The right side is identical.

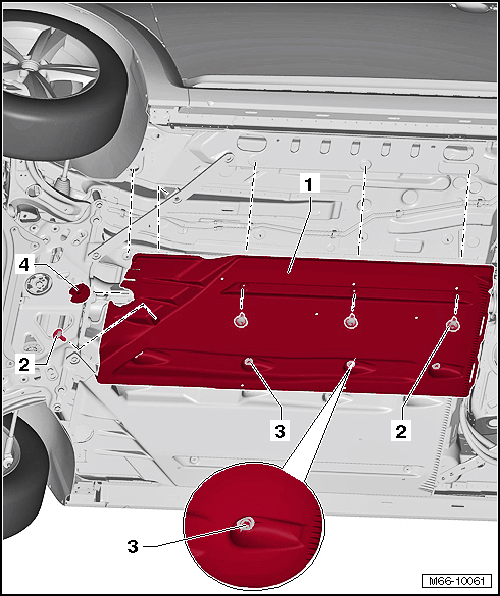

Fig 1: Underbody Panels Overview, Convertible
GWWM66-10061Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Underbody Panel
  2. Bolt
    • 2 Nm
  3. Nut
    • 2 Nm
    • Held in place by the tabs on the underbody trim panel
  4. Cover
    • Removing:

      -- Turn the cover 90 degrees counterclockwise.

      -- Remove the cover from the mount.
