Leak Detection Pump: Removing

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the right rear wheel housing liner. Refer to REMOVAL AND INSTALLATION .

-- Remove the rear bumper cover. Refer to REMOVAL AND INSTALLATION .

-- Remove the right side guide. Refer to DESCRIPTION AND OPERATION .

-- Remove the line -2 and 3-. Refer to CONNECTOR COUPLINGS, SEPARATING .

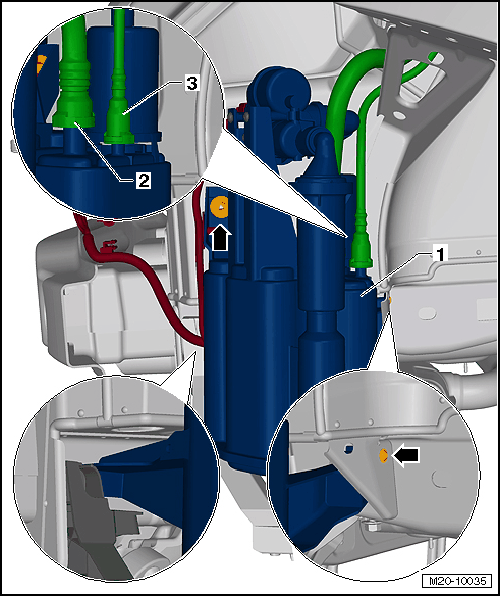

Fig 1: Identifying EVAP Canister

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the bolts for the lower bumper mount from the body and remove the mount.

-- Loosen the bolt and nut -arrows- from the EVAP canister -1-.

-- Loosen the EVAP canister from the mount in the longitudinal member and disconnect the connector from the leak detection pump.

-- Remove the EVAP canister.

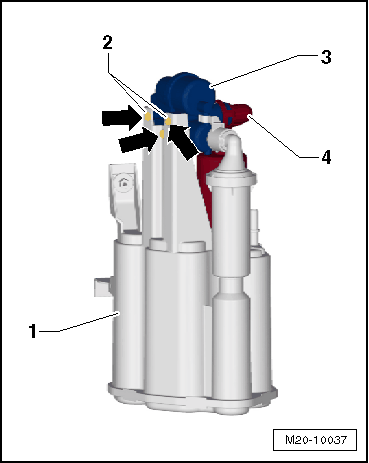

Fig 2: Identifying Leak Detection Pump And Air Filter

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the three bolts -2- and remove the leak detection pump -3- and the air filter -4-.

-- Remove the air filter -4- from the diagnostic pump -3-.
