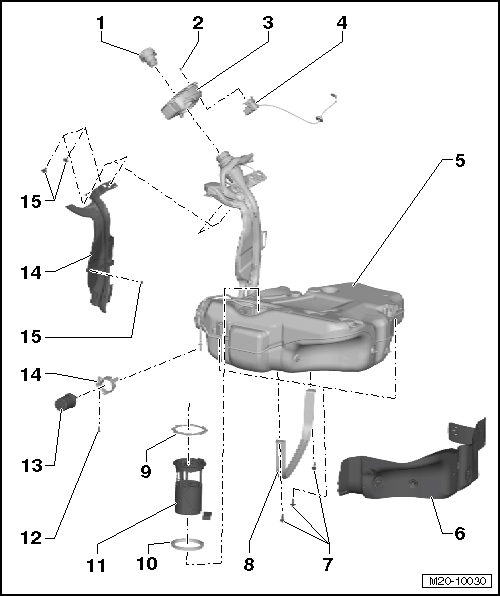

Overview - Fuel Tank
WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
- Cap
- Replace the seal if damaged.
- Bolt
- Fuel filler door unit with fuel filler door lock
- Tightening specification. Refer to DESCRIPTION AND OPERATION .
- Fuel Filler Door Unit
- With rubber cup
- Removing and installing. Refer to REMOVAL AND INSTALLATION .
- Fuel Flap Lock
- Refer to REMOVAL AND INSTALLATION .
- Fuel Tank
- Removing and installing. Refer to FUEL TANK .
- Heat Shield
- Bolts
- 25 Nm
- Fuel tank mounting
- Mounting Strap
- Note the installation position
- Locking Ring
- Make sure it is secure
- Tightening specification -Item 1- in Figure.
- Gasket
- Install the dry seal into the opening in the fuel tank
- Coat the inside of seal with fuel only before installing the fuel delivery unit.
- Replace after removing
- Fuel Delivery Unit
- Removing and installing. Refer to FUEL DELIVERY UNIT .
- Fuel Pump, Checking. Refer to DIAGNOSIS AND TESTING .
- Note installation position in fuel tank Figure
- With Fuel Level Sensor -G-
- Fuel Level Sensor -G-, Removing and installing. Refer to FUEL LEVEL SENSOR -G- .
- Fuel Filter Bracket
- Removing and installing. Refer to OVERVIEW - FUEL FILTER .
- Fuel Filter
- Installed position. Refer to Figure
- Removing and installing. Refer to OVERVIEW - FUEL FILTER .
- Cover Plate with Mount and Rivets
- Bolts
- 11 Nm
- Filler tube to body
