Overview - EVAP System, EVAP Canister In Right Rear Wheel Housing

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

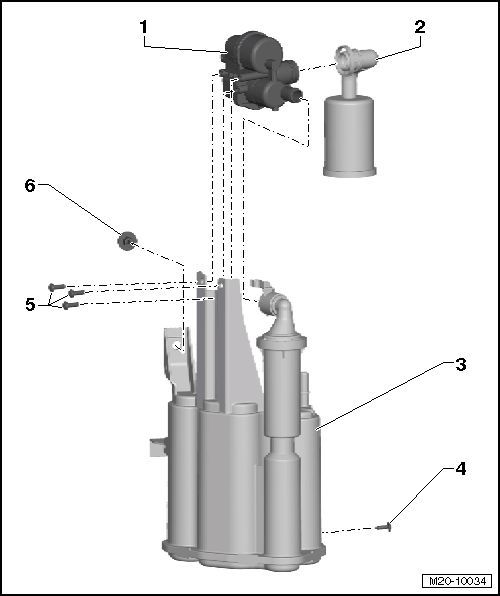

Fig 1: Identifying EVAP System, EVAP Canister In Right Rear Wheel Housing Components Overview
GWWM20-10034Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Leak Detection Pump -V144-
    • Component location: under the wheel housing liner inside right rear wheel housing
    • Removing and Installing. Refer to LEAK DETECTION PUMP .
  2. Air Filter
    • Complete with connecting line and connection
  3. Evaporative Emission (EVAP) Canister
    • Component location: under the wheel housing liner inside right rear wheel housing
    • Removing and installing. Refer to EVAP CANISTER .
  4. Bolt
    • 1.8 Nm
  5. Bolts
    • 1.8 Nm
    • Diagnostic pump to EVAP canister
  6. Nut
    • 8 Nm
