Overview - Steering Wheel

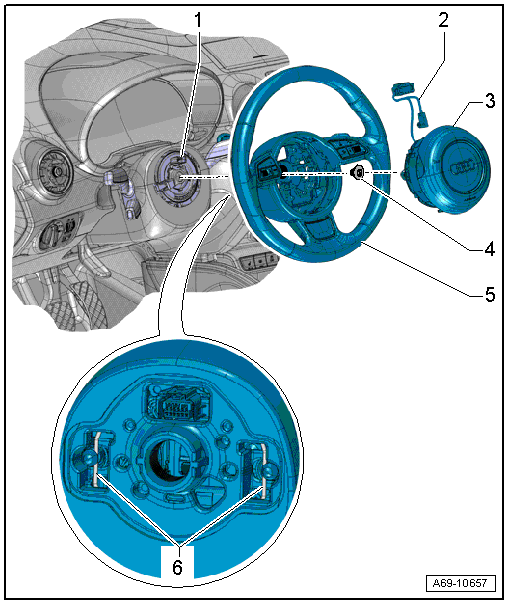

Fig 1: Exploded View Of Steering Wheel

Courtesy of AUDI OF AMERICA, LLC

Steering Column Electronics Control Module -J527-
- With Airbag Spiral Spring/Return Spring with Slip Ring -F138-
- Removing and installing. Refer to appropriate procedure: Steering Column Electronics Control Module -J527-, REMOVING AND INSTALLING, WITH MECHANICAL IGNITION LOCK or Steering Column Electronics Control Module -J527-, REMOVING AND INSTALLING, WITH ELECTRONIC IGNITION LOCK .
Wiring Harness
- For the Driver Airbag Igniter -N95-
Airbag Unit
- With Driver Airbag Igniter -N95-
  WARNING:
  Follow the safety precautions when working on airbags. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
- Removing and Installing. Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
Bolt
- 50 Nm
- Always replace if removed
Airbag Steering Wheel
- Removing and Installing. Refer to STEERING WHEEL, REMOVING AND INSTALLING .
- There are different versions. Refer to the parts information for the allocation.
Connector
- For Airbag Spiral Spring/Return Spring with Slip Ring -F138-
- Replacing AIRBAG CONNECTOR, REPLACING .
Locking Bracket
