Rear Three Point Seat Belt In Center Seating Position, Removing And Installing: Removing

-- Remove the rear bench seat. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

-- Remove the right 2/3 rear seat backrest. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .

-- Remove the backrest cover and backrest cushion from the rear seat backrest. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, BACKREST .

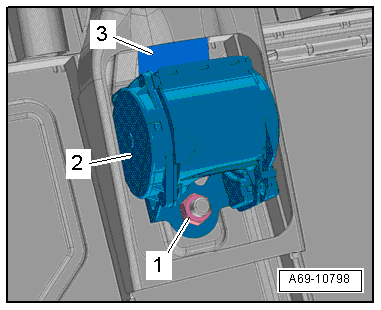

-- Remove the nut -1-.

GWWA69-10798Courtesy of AUDI OF AMERICA, LLC

-- Disengage the three-point seat belt -2- and remove it.

-- Guide out the seat belt -3-.
