Outer Rear Three-Point Seat Belt, Removing And Installing: Removing
-- Remove the rear outer belt end fitting. Refer to REAR OUTER BELT END FITTING, REMOVING AND INSTALLING .
-- Remove the luggage compartment side trim. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
-- Remove the cover from the seat belt guide Refer to SEAT BELT GUIDE COVER, REMOVING AND INSTALLING .
USA and Canada market versions:
- Follow all safety precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
- Follow all regulations when disposing of pyrotechnic components. Refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS, STORING, TRANSPORTING AND DISPOSING .
-- Disconnect the battery ground cable with the ignition turned on.
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.
-- Open the connector lock -2- with a small screwdriver -arrow- and disconnect the connector -1-.
Continuation for all vehicles:

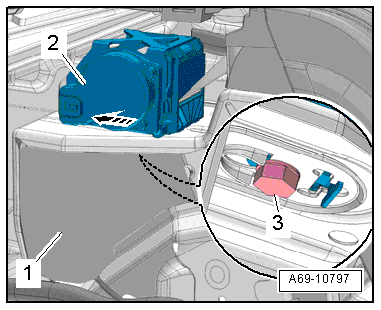

-- Remove the noise insulation -1- for the rear suspension strut.
-- Remove the bolt -3-.
-- Push the three-point seat belt -2- toward the rear -arrow- and remove it from the mount.
