Rear Seat Belt Latch, Removing And Installing: Removing

-- Remove the rear bench seat. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

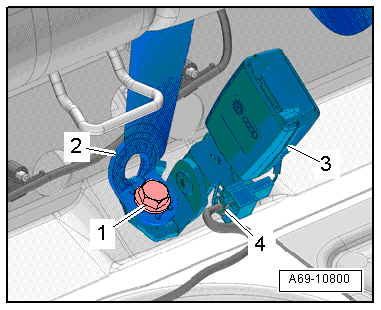

Right rear seat belt latch with rear center belt end fitting:

Courtesy of AUDI OF AMERICA, LLC

-- Vehicles with a seat belt switch: disconnect the connector -4- from the seat belt switch.

-- Remove the bolt -1-.

-- Remove the center rear belt end fitting -2-.

-- Remove the seat belt latch -3-.

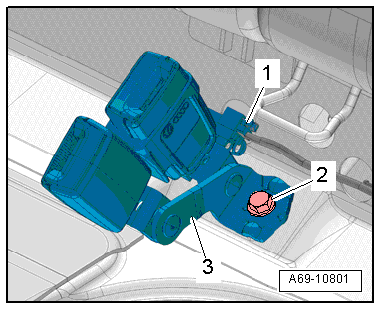

Left rear seat belt latch:

Courtesy of AUDI OF AMERICA, LLC

-- Vehicles with a seat belt switch: disconnect the connector -1- from the seat belt switch.

-- Remove the bolt -2-.

-- Remove the seat belt latch -3-.
