Rear Seat Belt Guide In Center Seating Position, Removing And Installing: Removing

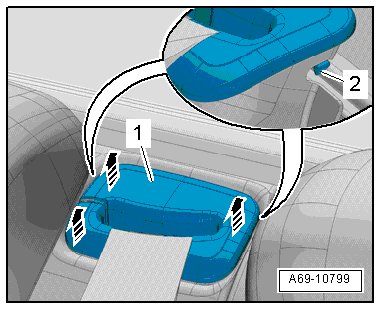

GWWA69-10799Courtesy of AUDI OF AMERICA, LLC

-- Release the retaining tabs -2- with a screwdriver or the Trim Removal Wedge:3409  .

-- at the same time unclip the belt guide -1- upward -arrows-.

-- Open the gap on the belt guide and thread out the belt.
