Rear Outer Belt End Fitting, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear bench seat. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

-- Remove the rear sill trim. Refer to REAR SILL PANEL STRIP, REMOVING AND INSTALLING .

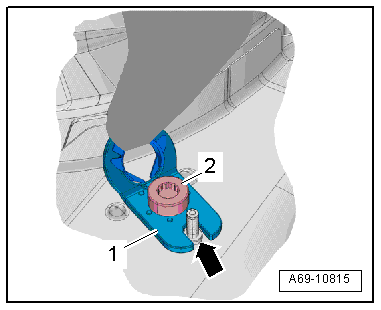

-- Remove the bolt -2- from the belt end fitting -1-.
