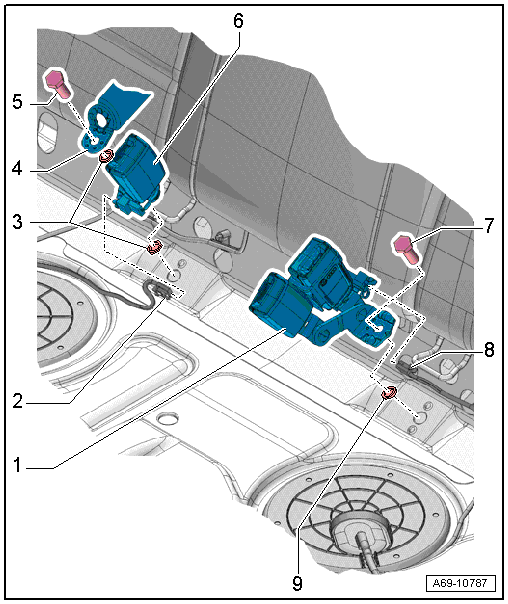

Overview - Rear Seat Belt Latch
Courtesy of AUDI OF AMERICA, LLC
- Seat Belt Latch
- With Driver Side Rear Seat Belt Switch -E258-
- USA and Canada market-specific without seat belt switch
- Removing and installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING .
- Always replaced if the belt tensioner has deployed with the belt on
- Align with the direction of travel when bolting it on
- The tabs on the floor panel must be between the recesses on the bolting surface of the seat belt latch.
- Connector
- For Passenger Side Rear Seat Belt Switch -E259-
- Equipment levels
- Seals
- Slide over the bolt thread and turn it all the way until it stops.
- Center Rear Belt End Fitting
- Bolt
- 45 Nm
- If it was removed because of an accident, replace the bolt
- Seat Belt Latch
- with Passenger Side Rear Seat Belt Switch -E259-
- USA and Canada market-specific without seat belt switch
- Removing and installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING .
- Always replaced if the belt tensioner has deployed with the belt on
- Align with the direction of travel when bolting it on
- The tabs on the floor panel must be between the recesses on the bolting surface of the seat belt latch.
- Bolt
- 45 Nm
- If it was removed because of an accident, replace the bolt
- Connector
- For the Driver Side Rear Seat Belt Switch -E258-
- Equipment levels
- Seal
- Slide over the bolt thread and turn it all the way until it stops.
