Overview - Rear Outer Three-Point Seat Belt

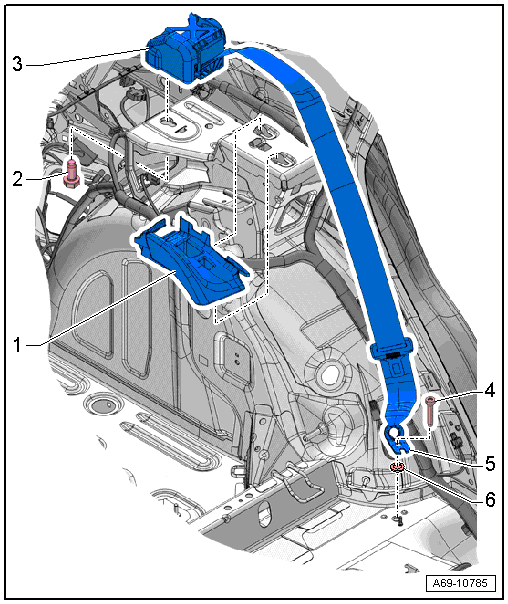

Fig 1: Rear Outer Three-Point Seat Belt Exploded View

Courtesy of AUDI OF AMERICA, LLC

1. Belt Guide
   CAUTION:

   • Do not rotate bolts under any circumstances when removing and installing belt guide. They are set by the manufacturer.
   • Replace the entire belt guide if damaged.
   • Removing and installing. Refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING .
   • Place in the bolt heads on the guides on the console and pull forward until the catches engage audibly.
2. Bolt
   • If it was removed because of an accident, replace the bolt
   • 45 Nm
3. Automatic Belt Retractor
   • Driver side: USA and Canada market-specific with Driver Side Rear Seat Belt Tensioner Igniter -N196-
   • Front passenger side: USA and Canada market-specific with Passenger Side Rear Seat Belt Tensioner Igniter -N197-
   • Removing and installing. Refer to OUTER REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
4. Bolt
   • 45 Nm
   • If it was removed because of an accident, replace the bolt
5. Outer Rear Belt End Fitting
   • Removing and installing. Refer to REAR OUTER BELT END FITTING, REMOVING AND INSTALLING .
6. Seal
   • Slide over the bolt thread and turn it all the way until it stops.
