Overview - Rear Center Three-Point Seat Belt

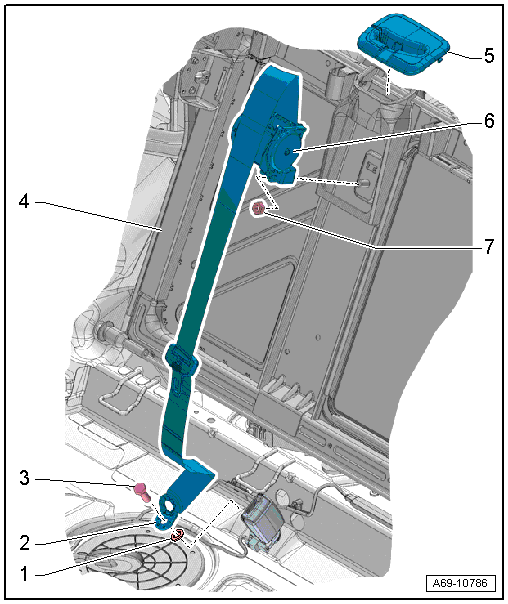

Fig 1: Rear Center Three-Point Seat Belt Exploded View

Courtesy of AUDI OF AMERICA, LLC

1. Seal
   • Slide over the bolt thread and turn it all the way until it stops.
2. Center Rear Belt End Fitting
   • Removing and installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING .
3. Bolt
   • Tightening specification. Refer to OVERVIEW - REAR SEAT BELT LATCH .
4. Right 2/3 Rear Seat Backrest
5. Rear Center Belt Guide
   • Replace the entire belt guide if damaged.
   • Removing and installing. Refer to REAR SEAT BELT GUIDE IN CENTER SEATING POSITION, REMOVING AND INSTALLING .
   • Press on until it engages audibly
6. Automatic Belt Retractor
   • Removing and installing. Refer to REAR THREE POINT SEAT BELT IN CENTER SEATING POSITION, REMOVING AND INSTALLING .
7. Nut
   • 45 Nm
   • If it was removed because of an accident, replace the nut
