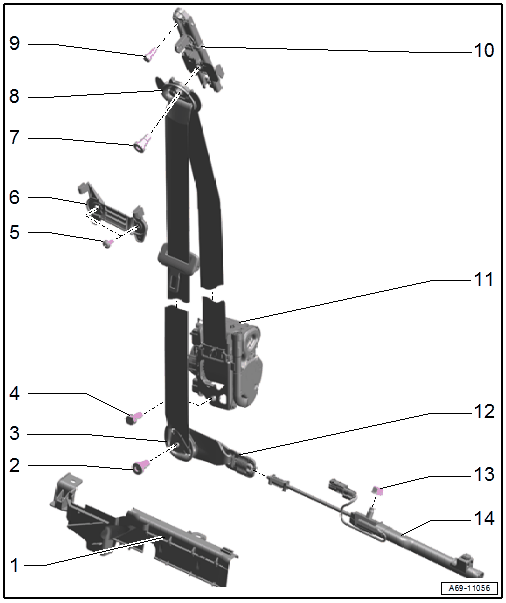

Overview - Front Three-Point Seat Belt, USA And CANADA Market
Courtesy of AUDI OF AMERICA, LLC
- Belt End Fitting Cover
- Bolt
- 45 Nm
- If it was removed because of an accident, replace the bolt
- Seat Belt Guide
- Must swing into vertical position or carrier direction by itself after tightening screw.
- Bolt
- 45 Nm
- If it was removed because of an accident, replace the bolt
- Bolt
- 5 Nm
- Quantity: 2
- If it was removed because of an accident, replace the bolt
- Front Seat Belt Guide
- Removing and installing. Refer to FRONT SEAT BELT GUIDE, REMOVING AND INSTALLING .
- Place the belt into the depression in the front belt guide.
- Do not jam or damage the belt
- Install the seat belt guide front alignment pin in the openings on the B-pillar.
- Bolt
- 45 Nm
- If it was removed because of an accident, replace the bolt
- Seat Belt Guide
- Must swing into vertical position or carrier direction by itself after tightening screw.
- Bolt
- 27 Nm
- If it was removed because of an accident, replace the bolt
- Seat Belt Height Adjuster
- Automatic Belt Retractor
- Drivers side: with Driver Seat Belt Tensioner Igniter 1 -N153- and Driver Belt Force Limiter -G551-
- Front passenger side: with Front Passenger Seat Belt Tensioner Igniter 1 -N154- and Front Passenger Belt Force Limiter -G552-
- Removing and installing. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
- Belt End Fitting
- Nut
- 45 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- Driver Seat Belt Tensioner Igniter 2 -N297-
