Overview - Front Three-Point Seat Belt, Not USA And CANADA Market-Specific

NOT FOR NORTH AMERICAN MARKET

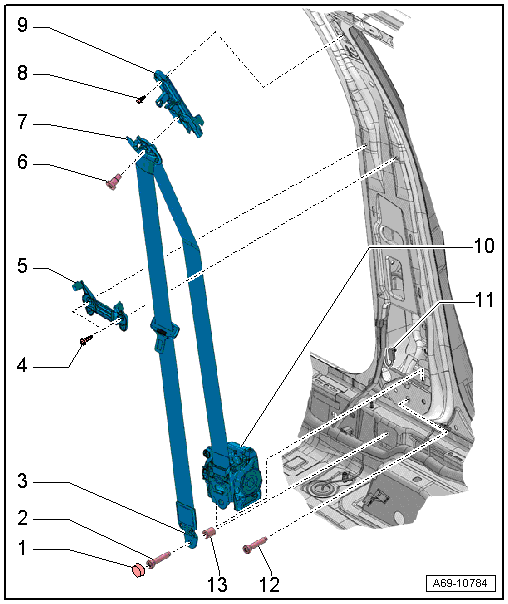

Fig 1: Front Three-Point Seat Belt Exploded View

Courtesy of AUDI OF AMERICA, LLC

1. Cap
2. Bolt
   • If it was removed because of an accident, replace the bolt
   • 45 Nm
3. Front Belt End Fitting
   • Removing and installing. Refer to FRONT BELT END FITTING, REMOVING AND INSTALLING .
4. Bolt
   • Quantity: 2
   • If it was removed because of an accident, replace the bolt
   • 5 Nm
5. Front seat belt guide
   • Removing and installing. Refer to FRONT SEAT BELT GUIDE, REMOVING AND INSTALLING .
   • Place the belt into the depression in the front belt guide.
   • Do not jam or damage the belt
   • Install the seat belt guide front alignment pin in the openings on the B-pillar.
6. Bolt
   • If it was removed because of an accident, replace the bolt
   • 45 Nm
7. Seat Belt Guide
   • Must swing into vertical position or carrier direction by itself after tightening screw.
8. Bolt
   • If it was removed because of an accident, replace the bolt
   • 27 Nm
9. Seat Belt Height Adjuster
   • Removing and installing. Refer to SEAT BELT HEIGHT ADJUSTER, REMOVING AND INSTALLING .
   • Always replaced if the belt tensioner has deployed with the belt on
10. Automatic Belt Retractor
    • Driver side: with Driver Seat Belt Tensioner Igniter 1 -N153-
    • Front passenger side: with Front Passenger Seat Belt Tensioner Igniter 1 -N154-
    • Removing and installing. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
11. Connector
    • Driver side: for Driver Seat Belt Tensioner Igniter 1 -N153-
    • Front passenger side: for Front Passenger Seat Belt Tensioner Igniter 1 -N154-
    • Disconnecting and connecting. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
12. Bolt
    • If it was removed because of an accident, replace the bolt
    • 45 Nm
13. Stop sleeves
