Front Belt End Fitting, Removing And Installing, USA And CANADA Market-Specific: Removing
-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Remove front sill panel trim. Refer to FRONT SILL PANEL STRIP, REMOVING AND INSTALLING .
-- Remove the lower B-pillar trim panel. Refer to LOWER B-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
-- Remove the nuts -arrows- for the carpet reinforcement.
-- Disengage the carpet -1- with the reinforcement from the sill panel and pull to the side.

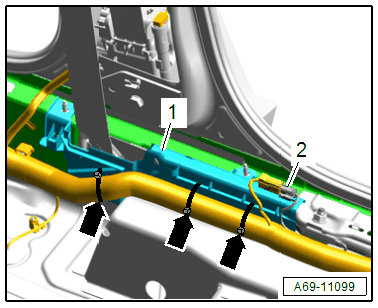

-- Disengage the front belt tensioner connector -2- at the cover and free it up.
-- Pull the carpet near the belt end fitting to the side, and cut through the cable ties -arrows-.

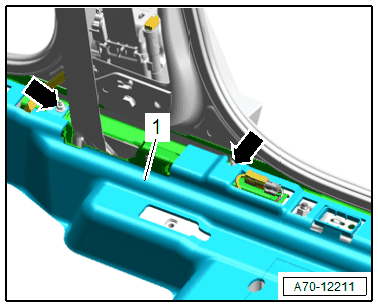

-- Unclip the belt end fitting cover -1- from the sill panel and remove.
-- Open the cover -2- for the belt anchor -1- with a screwdriver on the catches -arrow-, open and push aside.
-- Push together the catches on the securing clamp with a plies -A arrows-.
-- At the same time push the anchoring pins -2- together with the securing clamp -3- to release in the direction of -arrow B-.
-- Disengage the anchoring pins from the securing clamp in the belt anchor -1-.

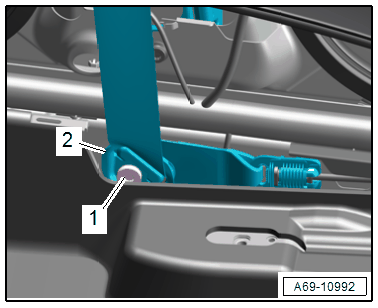

-- Remove the bolt -1- and then remove the belt relay -2-.
