Component Location Overview - Seat Belts And Attaching Points

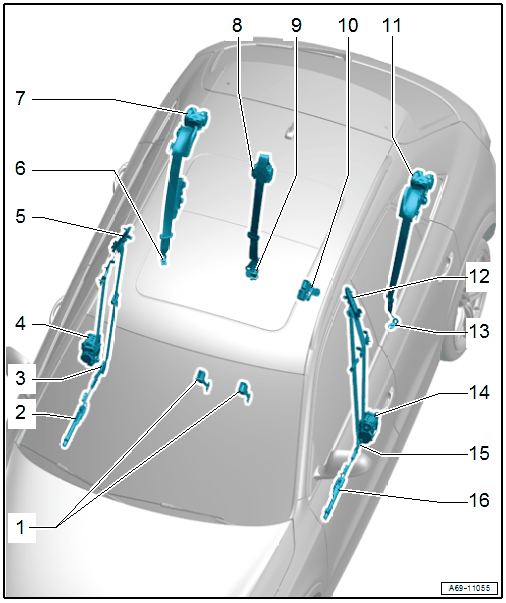

Fig 1: Seat Belts And Attaching Points Component Location

Courtesy of AUDI OF AMERICA, LLC

1. Front Seat Belt Latch
   • Overview. Refer to OVERVIEW - FRONT SEAT BELT LATCH .
2. Front Passenger Seat Belt Tensioner Igniter 2 -N298-
   • Only USA and Canada market
   • Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT, USA AND CANADA MARKET .
3. Front Belt End Fitting
   • Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
4. Automatic Belt Retractor
   • For the front three-point seat belt
   • With Front Passenger Seat Belt Tensioner Igniter 1 -N154-
   • USA and Canada market-specific with Front Passenger Seat Belt Tensioner Igniter 1 -N154-, Front Passenger Belt Force Limiter -G552-
   • Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
5. Seat Belt Height Adjuster
   • Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
6. Outer rear belt end fitting
   • Overview. Refer to OVERVIEW - REAR OUTER THREE-POINT SEAT BELT .
7. Automatic Belt Retractor
   • For rear outer three-point seat belt
   • USA and Canada market-specific with Passenger Side Rear Seat Belt Tensioner Igniter -N197-
   • Overview. Refer to OVERVIEW - REAR OUTER THREE-POINT SEAT BELT .
8. Automatic Belt Retractor
   • For the rear three-point seat belt in the center
   • Overview. Refer to OVERVIEW - REAR CENTER THREE-POINT SEAT BELT .
9. Rear Seat Belt Latch/Rear Center Belt End Fitting:
   • Overview. Refer to OVERVIEW - REAR SEAT BELT LATCH .
10. Rear Seat Belt Latch
    • Overview. Refer to OVERVIEW - REAR SEAT BELT LATCH .
11. Automatic Belt Retractor
    • For rear outer three-point seat belt
    • USA and Canada market-specific with Driver Side Rear Seat Belt Tensioner Igniter -N196-
    • Overview. Refer to OVERVIEW - REAR OUTER THREE-POINT SEAT BELT .
12. Seat Belt Height Adjuster
    • Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
13. Outer Rear Belt End Fitting
    • Overview. Refer to OVERVIEW - REAR OUTER THREE-POINT SEAT BELT .
14. Automatic Belt Retractor
    • For the front three-point seat belt
    • With Driver Seat Belt Tensioner Igniter 1 -N153-
    • USA and Canada market-specific with Driver Seat Belt Tensioner Igniter 1 -N153-, Driver Belt Force Limiter -G551-
    • Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
15. Front Belt End Fitting
    • Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
16. Driver Seat Belt Tensioner Igniter 2 -N297-
    • Only USA and Canada market
    • Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT, USA AND CANADA MARKET .
