Disconnecting and Connecting

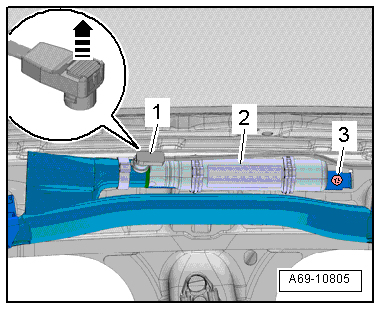

GWWA69-10805Courtesy of AUDI OF AMERICA, LLC
WARNING:

Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Release the connector lock with a small screwdriver -arrow- and disconnect the connector -1-.

-- Remove the bolt -3- from the head curtain airbag.

-- Disengage the front head curtain airbag -2-, to do this push the gas generator slightly upward and pull inward.

-- Push the head curtain airbag rearward from the mount and remove.
