Front Passenger Airbag Unit With Igniter, Removing And Installing: Removing
- Follow all safety precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
- Follow all regulations when disposing of pyrotechnic components. Refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS, STORING, TRANSPORTING AND DISPOSING .
- Follow the allocation of the airbag unit to the instrument panel. Refer to the parts information.
-- Disconnect the battery ground cable with the ignition turned on.
-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.
-- Disconnect the connector -3- from the Front Passenger Airbag Igniter 1 -N131-.
-- To do so, release the connector lock -2- with a small screwdriver -arrow- and disconnect the connector -1-.
USA And Canada Market Versions:
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

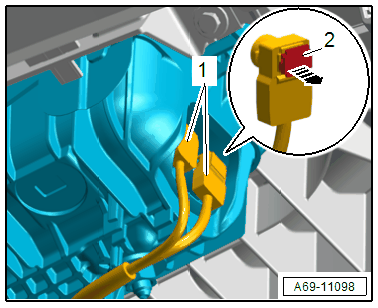

-- Release the connector lock -2- with a small screwdriver -arrow-.
-- Disconnect the connector -1- on the Front Passenger Airbag Igniter 1 -N131- and Front Passenger Airbag Igniter 2 -N132-.
Continuation For All Vehicles:

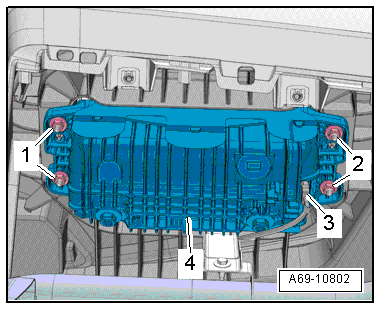

Secure the airbag unit from falling.
-- Remove the nuts -1 and 2-.
-- Remove the passenger airbag -4- downward.
Set the airbag down so the impact cushion faces upward.
