Front Passenger Airbag Deactivation Key Switch, Removing And Installing: Removing
WARNING:
Follow all safety precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
-- Disconnect the battery ground cable with the ignition turned on.
-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .
WARNING:
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

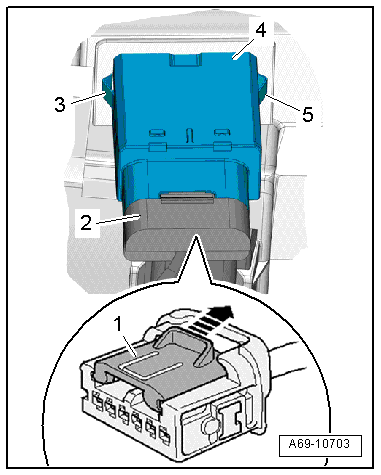

-- Press the catch -1- in -the direction of the arrow- until the connector disengages.
-- Disconnect the connector -2-.
-- Release the springs -3- and -5- and push the Front Passenger Airbag Deactivation Key Switch -E224- -item 4- out of the key switch housing.
