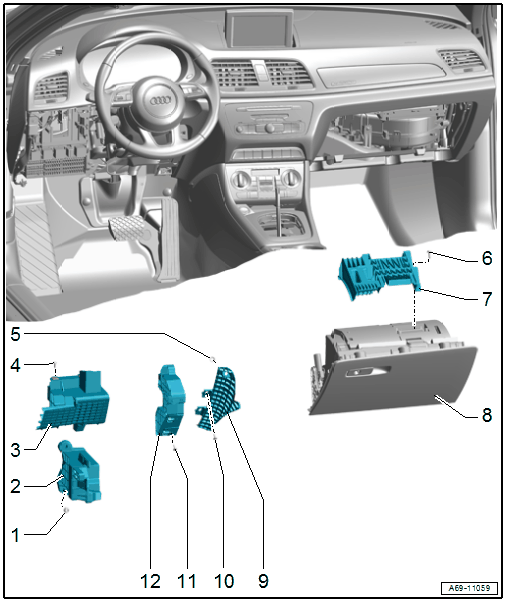

Overview - Deformation Element
- Nut
- 25 Nm
- Quantity: 3
- Lower Deformation Element
- Component location: under the instrument panel on the driver side
- Removing and installing. Refer to LOWER DEFORMATION ELEMENT, REMOVING AND INSTALLING, DRIVER SIDE .
- Upper Outer Deformation Element
- Component location: under the instrument panel on the driver side
- Removing and installing. Refer to UPPER OUTER DEFORMATION ELEMENT, REMOVING AND INSTALLING, DRIVER SIDE .
- Bolt
- 3 Nm
- Quantity: 2
- Lock Washer
- Replace after removing
- Press on until stop
- Bolt
- Quantity: 4
- 1.5 Nm
- Front Passenger Side Deformation Element
- Component location: on the glove compartment
- Removing and installing. Refer to FRONT PASSENGER SIDE DEFORMATION ELEMENT, REMOVING AND INSTALLING .
- Glove Compartment
- Removing and installing. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .
- Instrument Panel Deformation Element
- Component location: on the left side of the instrument panel
- Removing and installing. Refer to INSTRUMENT PANEL DEFORMATION ELEMENT, REMOVING AND INSTALLING .
- Bolt
- 1.5 Nm
- Quantity: 2
- Bolt
- 1.5 Nm
- Quantity: 3
- Upper Inner Deformation Element
- Component location: under the instrument panel on the driver side
- Removing and installing. Refer to UPPER INNER DEFORMATION ELEMENT, REMOVING AND INSTALLING, DRIVER SIDE .
