Overview - Rear Child Seat Anchors, Rear Seat

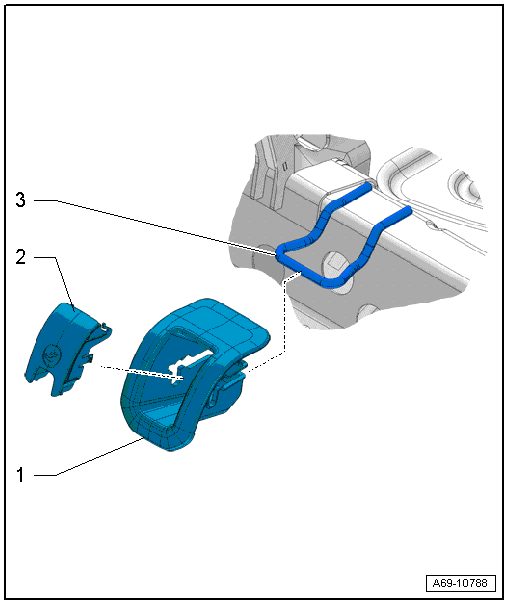

Fig 1: Rear Child Seat Anchors Exploded View

Courtesy of AUDI OF AMERICA, LLC

1. Guide
   • For child seat anchor
   • Quantity: 4
   • Removing and installing. Refer to CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING, REAR .
   • Must be secure on the anchor
2. Cover
   • For child seat anchor
   • Quantity: 4
   • Removing and installing. Refer to CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING, REAR .
   • Must be secure on the anchor
3. Child Seat Anchor
   • Quantity: 4
   • Welded to the floor panel.
