Overview - Rear Child Seat Anchors, Rear Seat Backrest

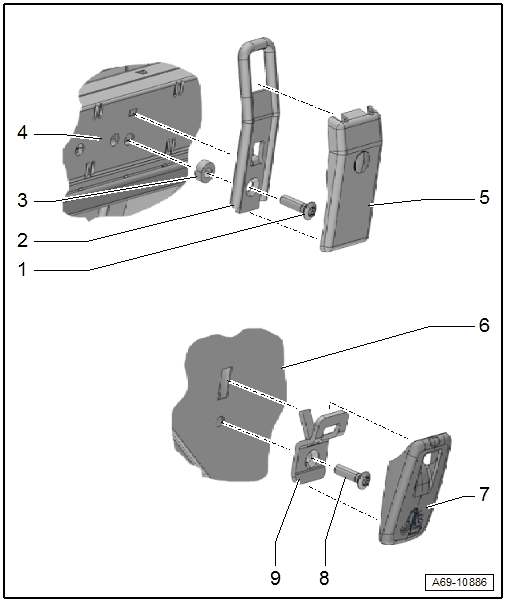

Fig 1: Rear Child Seat Anchors Exploded View

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • 8 Nm
2. Center Child Seat Anchor
   • Removing and installing. Refer to REAR CHILD SEAT ANCHOR, REMOVING AND INSTALLING .
3. Washer
4. Rear Seat Backrest
5. Cover
   • Engage in the child seat anchor and press on it until it engages audibly.
6. Rear Seat Backrest
7. Cover
   • Engage in the child seat anchor and press on it until it engages audibly.
8. Bolt
   • 8 Nm
9. Outer Child Seat Anchor
   • Quantity: 2
   • Removing and installing. Refer to REAR CHILD SEAT ANCHOR, REMOVING AND INSTALLING .
