Driver Side Rear Side Airbag Crash Sensor -G256- / Passenger Side Rear Side Airbag Crash Sensor -G257-, Removing And Installing: Removing
WARNING:
- Follow all safety precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.
-- Disconnect the battery ground cable with the ignition turned on.
-- Remove the rear sill panel strip. Refer to REAR SILL PANEL STRIP, REMOVING AND INSTALLING .
WARNING:
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

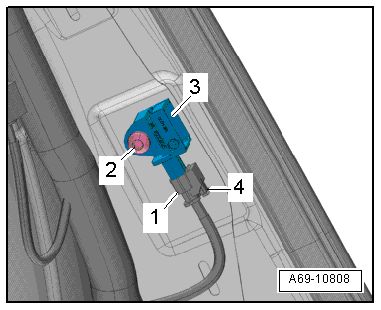

-- Pull out connector lock -4- and press down, disconnect harness connector -1- at the crash sensor.
-- Remove the screw -2- and the side airbag crash sensors -3-.
