Overview - Airbag Control Module

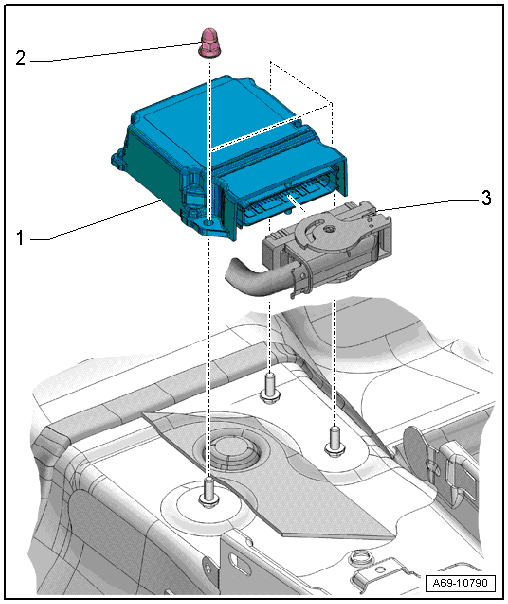

Fig 1: Airbag Control Module Exploded View
GWWA69-10790Courtesy of AUDI OF AMERICA, LLC
  1. Airbag Control Module -J234-
  2. Nut
    • 9 Nm
    • Quantity: 3
    • The thread must be paint and contaminant free, nut and ground bolts serve as ground connection for the control module
  3. Connector
