Oil Pump, Removing And Installing: Removing

WARNING: This page is about a different car, the 2018 Audi Q3 Quattro, 2018 Audi Q3, 2017 Audi Q3 Quattro, and 2017 Audi Q3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the oil pan lower section. Refer to OIL PAN LOWER SECTION, REMOVING AND INSTALLING .

-- Remove the bolts -arrows- and then remove the oil baffle.

Courtesy of AUDI OF AMERICA, LLC

-- Pull the wire clip from the chain tensioner tension spring with the : T10118 in the direction of -arrow- and lock with the : T40265 .

Courtesy of AUDI OF AMERICA, LLC

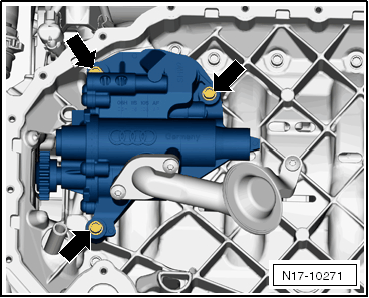

Oil Pump with Three Attachment Points

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the oil pump.

Oil pump with Four Attachment Points

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the oil pump.
