Oil Pan Upper Section, Removing And Installing: Removing

WARNING: This page is about a different car, the 2018 Audi Q3 Quattro, 2018 Audi Q3, 2017 Audi Q3 Quattro, and 2017 Audi Q3. However, it is still accessible from the selected car via links, so may be relevant.

Transmission removed. Refer to TRANSMISSION, REMOVING AND INSTALLING (S-tronic) or TRANSMISSION, REMOVING AND INSTALLING (Automatic Transmission 09M).

Depending on the model, preliminary work may be required. Refer to Oil Pan Lower Section, Removing and Installing and Oil Pan/Oil Pump .

-- Remove the transmission side sealing flange. Refer to SEALING FLANGE, REMOVING AND INSTALLING, TRANSMISSION SIDE .

-- Remove the oil pump. Refer to OIL PUMP, REMOVING AND INSTALLING .

-- Open the clamps -1 and 2- and remove the air duct hoses.

GWWA21-10162

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the air duct pipe.

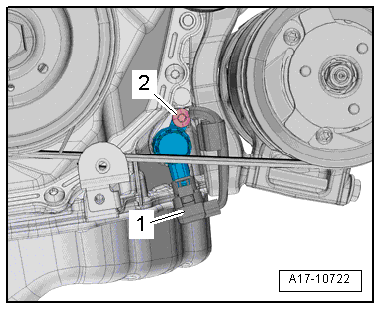

-- Disconnect the connector -1- from the Oil Pressure Regulation Valve -N428- depending on the version not installed on all engines.

GWWA17-10722

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1-.

GWWA21-10161

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cable holder next to the After-Run Coolant Pump -V51-.

-- Remove the bolts -arrows-.

GWWN17-10200

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

- When removing the oil pan upper section, do not reach near the lower timing chain cover.

-- Loosen and remove the bolts in the following sequence: -14 to 1-.

GWWA17-10273

Courtesy of AUDI OF AMERICA, LLC

There may be 13 bolts installed, depending on the version.
First pry the oil pan upper section out on the transmission side. Proceed carefully when prying out.

-- Loosen the oil pan upper section from the adhesive.
