Knock Sensor 1 -G61-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2018 Audi Q3 Quattro, 2018 Audi Q3, 2017 Audi Q3 Quattro, and 2017 Audi Q3. However, it is still accessible from the selected car via links, so may be relevant.
-- Disconnect the connector -2- for the Knock Sensor 1 -G61-.
-- Remove the coolant pump (refer to COOLANT PUMP, REMOVING AND INSTALLING ) and remove the coolant thermostat (refer to COOLANT THERMOSTAT, REMOVING AND INSTALLING ).
TIP:

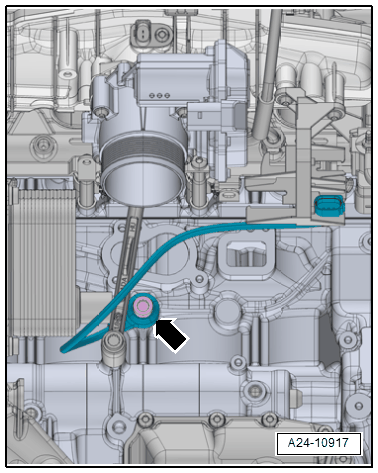

The Knock Sensor 1 -G61- is located below the intake manifold behind the coolant pump.
-- Remove the bolt -arrow- and then the Knock Sensor 1 -G61-.
