Overview - Cylinder Block, Belt Pulley Side, Version 1

WARNING: This page is about a different car, the 2018 Audi Q3 Quattro, 2018 Audi Q3, 2017 Audi Q3 Quattro, and 2017 Audi Q3. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Cylinder Block, Belt Pulley Side, Exploded View
GWWA13-10454Courtesy of AUDI OF AMERICA, LLC
  1. Vibration Damper
  2. O-ring
    • Not a replacement part; supplied with the bolt
  3. Bolt
    • 150 Nm + 90°
    • Always replace after removing.
    • Coat the O-ring with engine oil
  4. Ribbed Belt
    • Check for wear
    • Do not kink
    • Ribbed belt routing. Refer to  13.
    • Before removing, mark the running direction using chalk or a felt-tip pen. Reversing the running direction on a used belt can destroy it
    • When installing, make sure it is seated correctly on the belt pulleys
    • Removing and installing. Refer to RIBBED BELT, REMOVING AND INSTALLING .
  5. Ribbed Belt Tensioner
    • To release the tension on the ribbed belt, pivot using an open end wrench.
    • Secure using the Locking Pin:T10060A
    • Tensioning roller can be replaced separately. Refer to  4.
    • Removing and installing. Refer to RIBBED BELT TENSIONER, REMOVING AND INSTALLING
  6. Sub-Assembly Bracket
  7. Bolt
    • 10 Nm
  8. Generator
  9. Bolt
  10. Bolt
    • Tightening Specifications and Sequence. Refer to Fig 3.
  11. A/C Compressor
  12. Bolt
  13. Alignment Sleeve
    • For the A/C compressor
Fig 2: Belt Routing
GWWA13-10905Courtesy of AUDI OF AMERICA, LLC
  1. Vibration Damper
  2. Ribbed Belt Tensioner
  3. Generator
  4. A/C Compressor

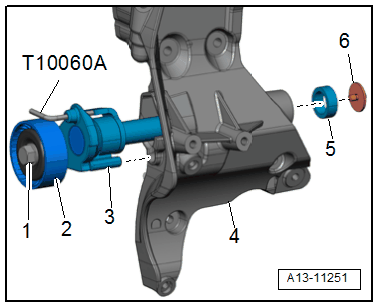

GWWA13-11251Courtesy of AUDI OF AMERICA, LLC

1 -Bolt

2 -Tensioning Roller

3 -Support

4 -Sub-Assembly Bracket

5 -Centering Bracket

6 -Bolt

Fig 3: Accessory Assembly Bracket Tightening Sequence
GWWA13-10378Courtesy of AUDI OF AMERICA, LLC

-- Mount the sub-assembly bracket and then install the bolts -4- first.

-- Tighten the bolts in the steps shown in the sequence:

Step Bolts Tightening Specification/Additional Turn
1. -1 through 5- Install by hand all the way
2. -1 through 5- 20 Nm
3. -1 through 5- 90° additional turn
