Engine, Supporting In Installed Position
Special tools and workshop equipment required
- Engine Support Bridge: 10-222A
- Engine Support Bridge - Special Hook (2 pc.): 10-222A/20
- Pry Lever: 80-200
- Lifting Eyebolt: 3368
- : T40093/6 from the Engine Support - Supplement Kit: T40093A
- M10 collar nut or nut with washer
Procedure
-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
-- Unclip the left and right sealing piece -1- using the :80-200 .

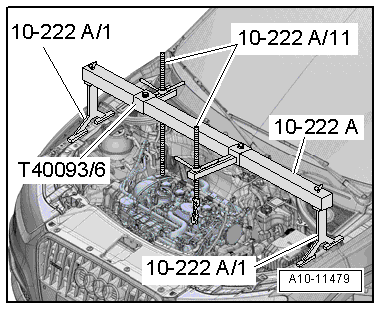

-- Position the :10-222A with the :10-222A/11 on the longitudinal member for the upper wheel housing as shown.
-- Attach the left spindle carabiner hook to the engine lifting eye.
WARNING:
Risk of accident if the threaded connection is loose.

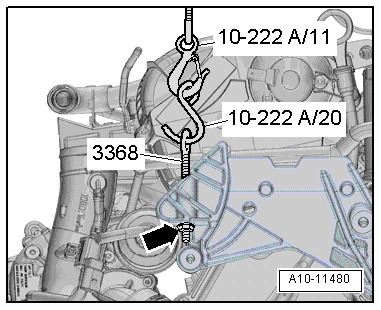

- Tightening the collar nut (or the nut and washer) -arrow- at least 6 turns will make sure the Lifting Eyebolt: 3368 is secure.
-- Secure the :3368 to the engine support with an M10 collar nut or an M10 nut and washer as illustrated.
-- Engage the :10-222A/11 with the right :10-222A/20 on the : 3368 .
-- Pretension the engine/transmission assembly with both spindles, but do not lift it.
