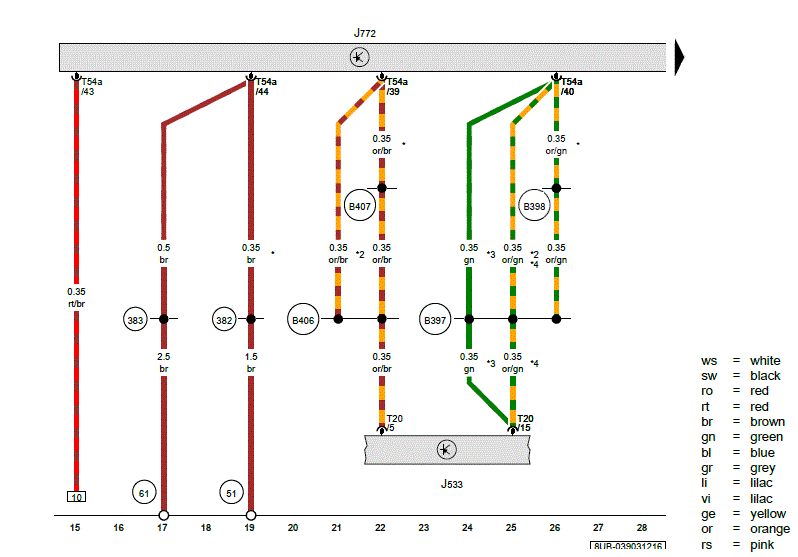

Data Bus On Board Diagnostic Interface, Rearview Camera System Control Module
J533 Data bus on board diagnostic interface
J772 Rearview camera system control module
T20 20-pin connector
T54a 54-pin connector
(51) Ground connection in luggage compartment, right
(61) Ground connection on left C-pillar
(382) Ground connection 17 (in main wiring harness)
(383) Ground connection 18 (in main wiring harness)
(B397) Comfort system CAN bus high connection 1 (in main wiring harness)
(B398) Comfort system CAN bus high connection 2 (in main wiring harness)
(B406) Comfort system CAN bus low connection 1 (in main wiring harness)
(B407) Comfort system CAN bus low connection 2 (in main wiring harness)
* Omitted as a running change
*2 Running change
*3 from November 2016
*4 through October 2016
