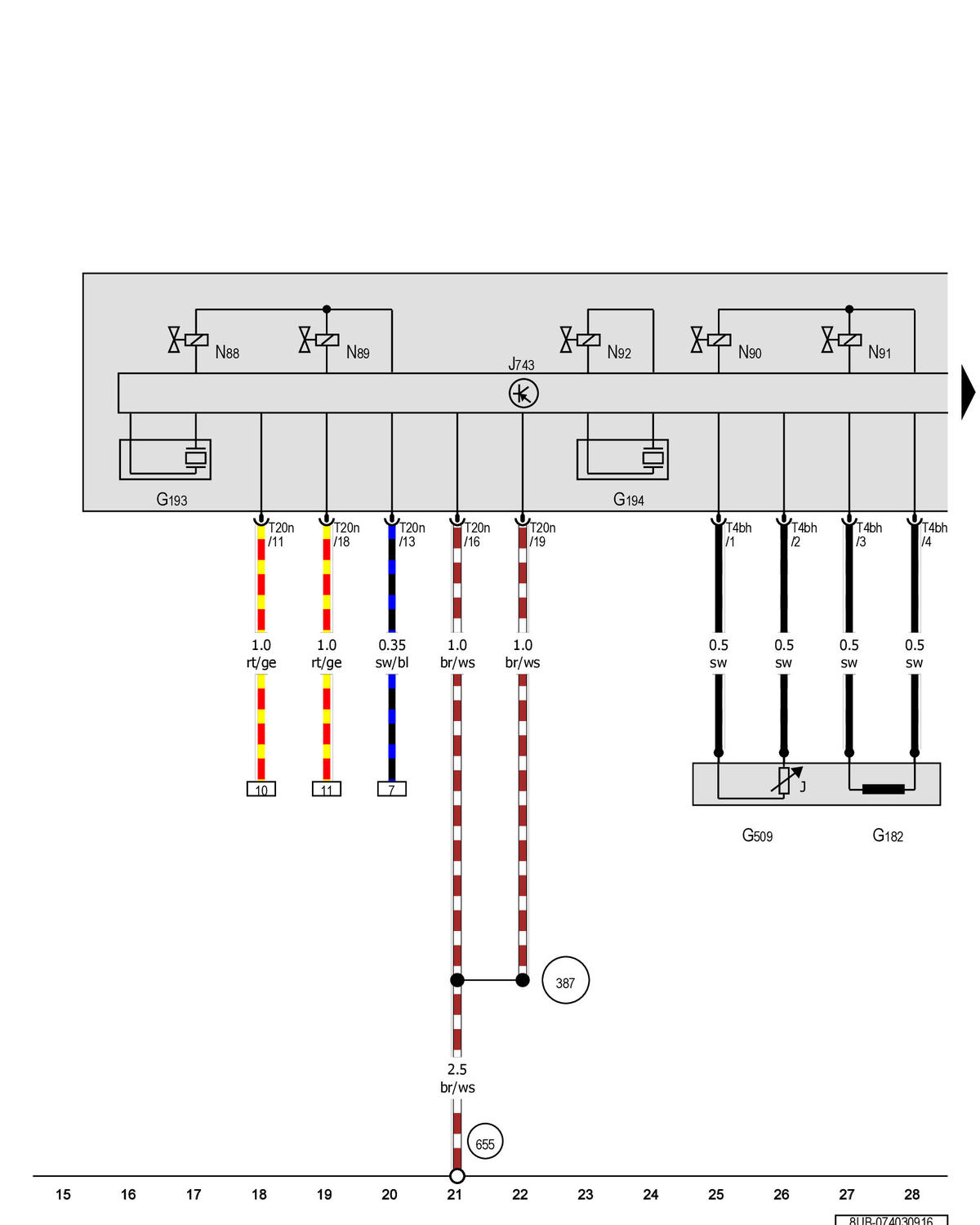

Transmission Input Speed Sensor, Automatic Transmission Hydraulic Pressure Sensor 1, Automatic Transmission Hydraulic Pressure Sensor 2, Clutch Oil Temperature Sensor, Dual-Clutch Transmission MECHATRONIC, Solenoid Valve 1, Solenoid Valve 2, Solenoid Valve 4, Solenoid Valve 5

G182  Transmission input speed sensor

G193  Automatic transmission hydraulic pressure sensor 1

G194  Automatic transmission hydraulic pressure sensor 2

G509  Clutch oil temperature sensor

J743  Dual-clutch transmission Mechatronic

N88  Solenoid valve 1

N89  Solenoid valve 2

N90  Solenoid valve 3

N91  Solenoid valve 4

N92  Solenoid valve 5

T4bh  4-pin connector

T20n  20-pin connector, black

(387) Ground connection 22 (in main wiring harness)

(655) Ground connection on left headlamp
