Overview - Cover And Cushion, Sport Bench Seat

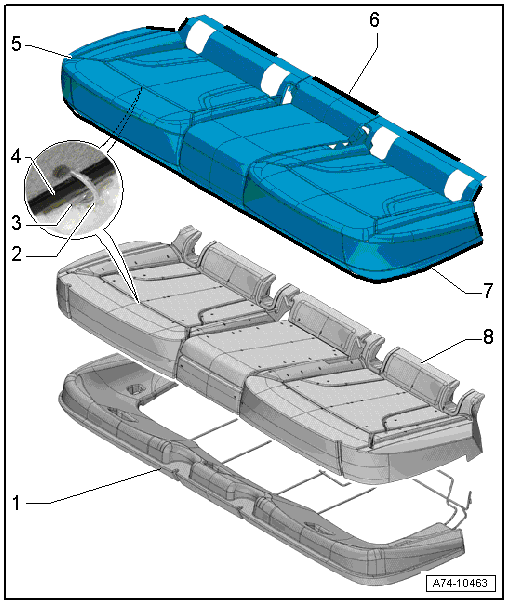

Fig 1: Exploded View Of Cover And Cushion (Sport Bench Seat)

Courtesy of AUDI OF AMERICA, LLC

1. Seat Frame
   • With the molded piece
2. Upholstery Clip
   • For attachment of seat cover to seat cushion
   • Replace
   • Install at the same location with Upholstery Clip Pliers:VAG1634  .
3. Wire
   • Embedded in the foam of the seat cushion
   • For attachment of seat cover to seat cushion
4. Contour Strip
   • Sewn into seat cover
   • For attachment of seat cover to seat cushion
5. Seat Cover
   • Seat cover and cushion, removing and installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, BENCH SEAT .
   • Seat cover and cushion, removing and installing. Refer to COVER AND CUSHION, SEPARATING, BENCH SEAT .
   • Allocation. Refer to the parts information .
   • Make sure there are no folds after installing
6. Molding
   • Sewn into seat cover
   • For engaging the seat cover in the seat frame
   • Make sure is fits correctly on the seat frame
7. Clamping Strip
   • Sewn into seat cover
   • For attaching the seat cover to the seat frame
   • Strip inward 180° and engage in the groove in the molded piece. Refer to Installing .
8. Seat Cushion
   • Seat cover and cushion, removing and installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, BENCH SEAT .
   • Seat cover and cushion, removing and installing. Refer to COVER AND CUSHION, SEPARATING, BENCH SEAT .
   • Allocation. Refer to the parts information .
