Cover And Cushion, Separating, Backrest: Removing

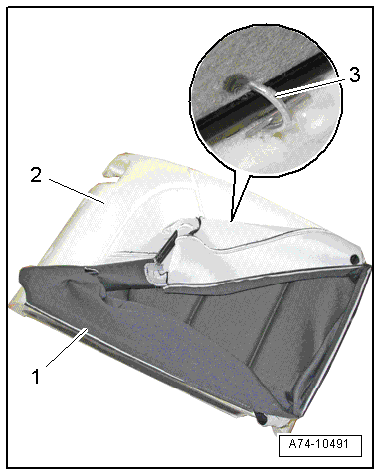

GWWA74-10491Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear seat backrest. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .

-- Remove the backrest cover and backrest cushion from the rear seat backrest. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, BACKREST .

-- Remove the backrest cover -1- from the backrest padding -2- as far as possible and cut the upholstery clips -3- using pliers.
