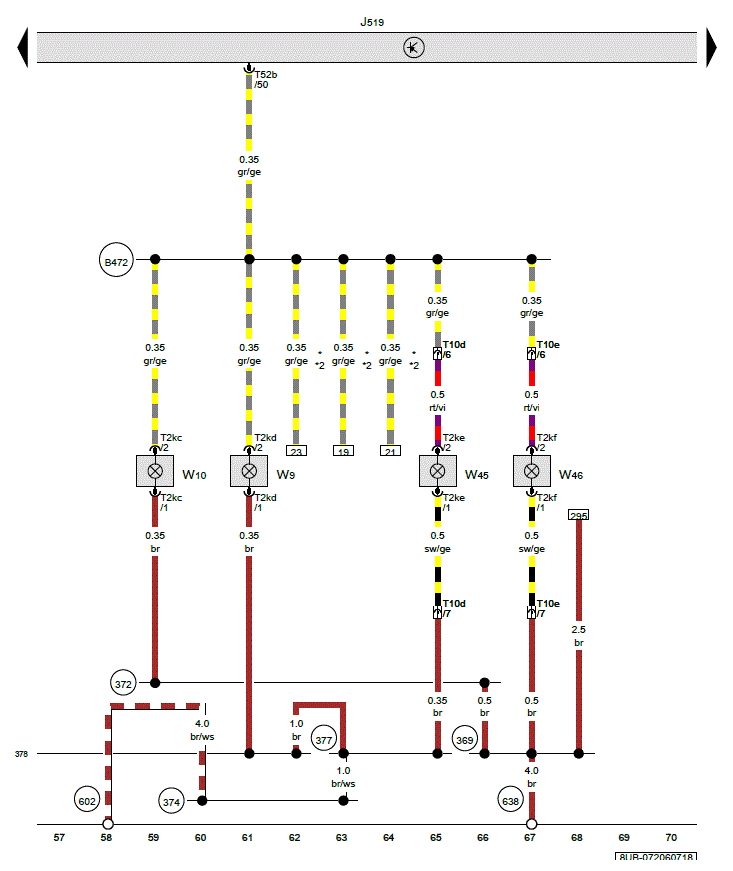

Left FOOTWELL Lamp, Right FOOTWELL Lamp, Left Rear FOOTWELL Lamp, Right Rear FOOTWELL Lamp
J519 Vehicle electrical system control module
T2kc 2-pin connector, black
T2kd 2-pin connector, black
T2ke 2-pin connector, black
T2kf 2-pin connector
T10d 10-pin connector, in the coupling point for the left front seat
T10e 10-pin connector, in the coupling point for the right front seat
T52b 52-pin connector, naturally cloudy
W9 Left footwell lamp
W10 Right footwell lamp
W45 Left rear footwell lamp
W46 Right rear footwell lamp
(369) Ground connection 4 (in main wiring harness)
(372) Ground connection 7 (in main wiring harness)
(374) Ground connection 9 (in main wiring harness)
(377) Ground connection 12 (in main wiring harness)
(378) Ground connection 13 (in main wiring harness)
(602) Ground connection in left front footwell
(638) Ground connection on right A-pillar
(B472) Connection 8 (in main wiring harness)
* Only for vehicles with concert radio system
*2 Only for vehicles with MMI
