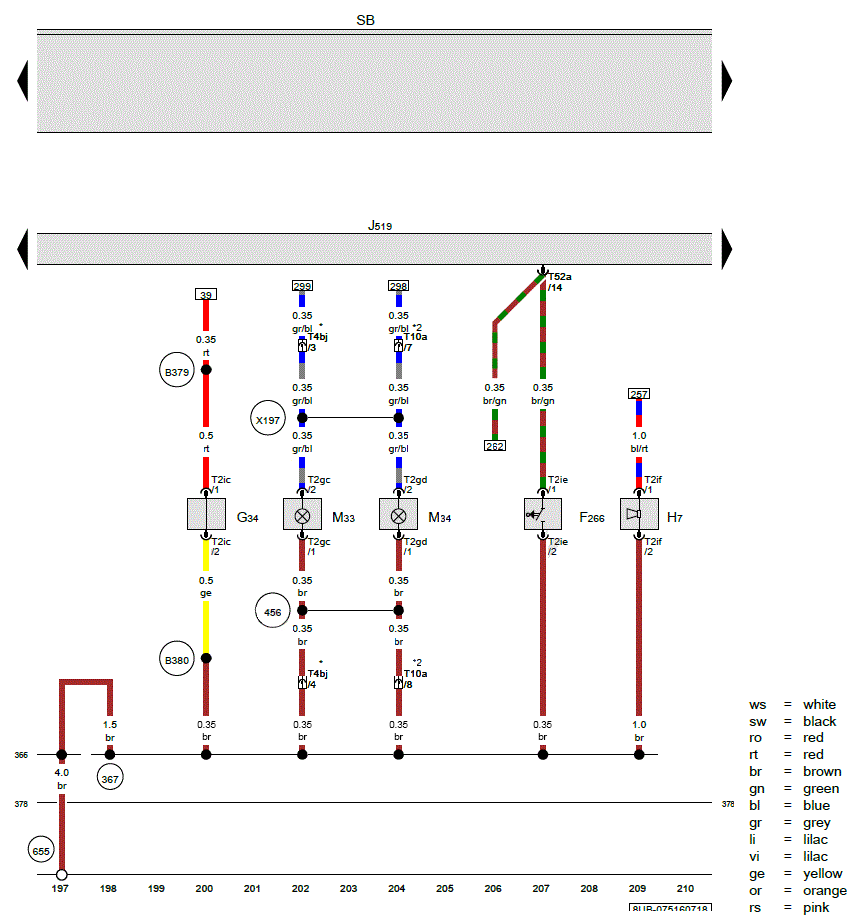

Engine Hood Contact Switch, Left Front Brake Pad Wear Sensor, Low Tone Horn, Vehicle Electrical System Control Module, Left Front Side Marker Lamp Bulb, Right Front Side Marker Lamp Bulb
F266 Engine hood contact switch
G34 Left front brake pad wear sensor
H7 Low tone horn
J519 Vehicle electrical system control module
M33 Left front side marker lamp bulb
M34 Right front side marker lamp bulb
SB Fuse Panel B
T2gc 2-pin connector, black
T2gd 2-pin connector, black
T2ic 2-pin connector
T2ie 2-pin connector, black
T2if 2-pin connector, black
T4bj 4-pin connector
T10a 10-pin connector
T52a 52-pin connector, black
(366) Ground connection 1 (in main wiring harness)
(367) Ground connection 2 (in main wiring harness)
(378) Ground connection 13 (in main wiring harness)
(456) Ground connection 1 (in front bumper wiring harness)
(655) Ground connection on left headlamp
(B379) Brake wear indicator connection 1 (in main wiring harness)
(B380) Brake wear indicator connection 2 (in main wiring harness)
(X197) Connection 1 (in lower front bumper wiring harness)
* Depending on equipment
*2 Only for vehicles with park distance control (PDC)
