Luggage Compartment Side Trim Panel, Removing And Installing: Removing
-- If installed, remove the luggage compartment roller cover.
-- Remove the rear seat backrest. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .
-- Versions with a side cushion: remove the side cushion. Refer to REAR SIDE PADDING WITH SIDE AIRBAG, REMOVING AND INSTALLING .
-- Remove the rear sill trim. Refer to REAR SILL PANEL STRIP, REMOVING AND INSTALLING .
-- Remove the front luggage compartment floor. Refer to Luggage Compartment Floor Panel, Removing And Installing .
-- Remove the lock carrier trim. Refer to LOCK CARRIER TRIM PANEL, REMOVING AND INSTALLING .
-- Remove the tie-down. Refer to TIE DOWN, REMOVING AND INSTALLING .
-- Remove the Left Luggage Compartment Lamp -W18- /Right Luggage Compartment Lamp -W35- from the luggage compartment side trim panel. Refer to Lamps .
-- Remove the coat hook. Refer to COAT HOOKS, REMOVING AND INSTALLING .

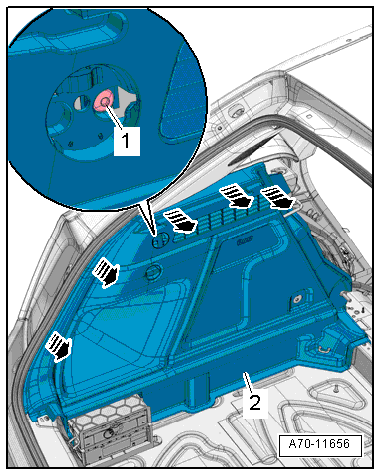

-- Remove the bolt -1-.
-- Remove the cover for the luggage compartment side panel.
-- Remove the rear lid seal near the luggage compartment side trim panel.
-- Pry out the luggage compartment side trim panel -2- at the front and back using the Pry Lever:80 - 200 from the body -arrows-.
-- Carefully remove the luggage compartment side trim panel from the D-pillar trim -arrows-.
-- Remove the luggage compartment side trim panel from the catch for the rear seat backrest.
