Roof Trim Lamps And Switches Overview: Notes
Observe notes on contact corrosion. Refer to CONTACT CORROSION .

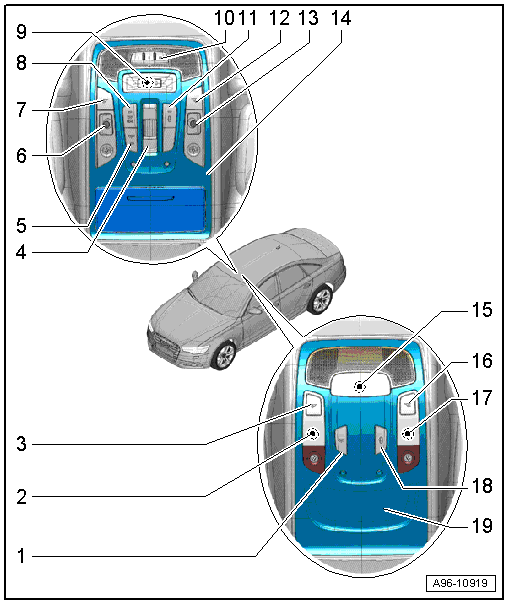

Garage Door Opener Control Module, Humidity Sensor, Vanity Mirror Illumination and Rear Interior Lamp
Fig 1: Identifying Garage Door Opener Control Module, Humidity Sensor, Vanity Mirror Illumination and Rear Interior Lamp
- Garage Door Opener Control Module -J530-
- Removal and installation, refer to Garage Door Opener Control Module -J530-
- Humidity Sensor -G355-
- Overview, refer to HEADLAMP ASSISTANT, HUMIDITY SENSOR AND LANE ASSIST OVERVIEW
- Front Passenger Vanity Mirror Lamp -W14-
- Removal and installation, refer to VANITY MIRROR LAMP -W20- / -W14-
- Left Rear Interior Lamp -W47-
Basic
- Replacing, refer to REAR INTERIOR LAMP -W47- / -W48- BULB, "Basis"
Comfort
- The rear interior lamp must be replaced if one of the LEDs is faulty
- Replacing, refer to REAR INTERIOR LAMP -W47- / -W48- BULB, "Basis"
- Left Rear Reading Lamp Switch -E454-
- Rear Interior Lamp
- Removal and installation, refer to REAR INTERIOR LAMP/READING LAMP
- Right Rear Reading Lamp Switch -E455-
- Right Rear Interior Lamp -W48-
Basic
- Replacing, refer to REAR INTERIOR LAMP -W47- / -W48- BULB, "Basis"
Comfort
- The rear interior lamp must be replaced if one of the LEDs is faulty
- Replacing, refer to REAR INTERIOR LAMP -W47- / -W48- BULB, "Basis"
- Driver Vanity Mirror Lamp -W20-
- Removal and installation, refer to VANITY MIRROR LAMP -W20- / -W14-

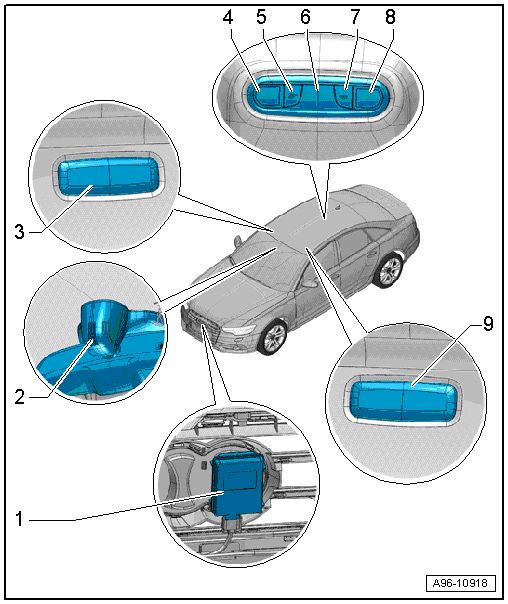

Basic and Comfort Front Interior Lamp, Garage Door Opener Control Head, Sunroof Switch
Fig 2: Identifying Basic and Comfort Front Interior Lamp, Garage Door Opener Control Head, Sunroof Switch
- Interior Lighting Switch -E317-
- Basic
- Common part with interior lamp/front reading lamp
- Driver Map/Reading Lamp -W19-
- Basic
- Replacing, refer to FRONT READING LAMP -W13- / -W19- BULB, "Basis"
- Driver Reading Lamp Button -E457-
- Basic
- Common part with interior lamp/front reading lamp
- Sunroof Button -E325-
- Vehicles with roof shade button 1 -E584-, roof shade button 2 -E585-
- Removal and installation, refer to Sunroof Button -E325-
- Interior Lighting Switch -E317-
- Comfort
- Common part with interior lamp/front reading lamp
- Left Front Reading Lamp -W65-
- Comfort
- If the LED is faulty, then the interior lamp/reading lamp must be replaced
- Left Front Reading Lamp Button -E633-
- Comfort
- Removal and installation, refer to FRONT READING LAMP BUTTON -E633- / -E634-, "Comfort"
- Rear Reading Lamp Front Button -E635-
- Comfort
- Common part with interior lamp/front reading lamp
- Front Interior Lamp -W1-
- Comfort
- If the LED is faulty, then the interior lamp/reading lamp must be replaced
- Garage Door Opener Control Head -E284-
- Removal and installation, refer to Garage Door Opener Control Head -E284-
- Button
- Comfort
- For the individual door contact switch
- Common part with interior lamp/front reading lamp
- Right Front Reading Lamp Button -E634-
- Comfort
- Removal and installation, refer to FRONT READING LAMP BUTTON -E633- / -E634-, "Comfort"
- Right Front Reading Lamp -W66-
- Comfort
- If the LED is faulty, then the interior lamp/reading lamp must be replaced
- Interior Lamps/Front Reading Lamps
- Vehicles with an eyeglass compartment
- Removal and installation, refer to INTERIOR LAMP/READING LAMP, FRONT, WITH EYEGLASS COMPARTMENT
- Front Interior Lamp -W1-
- Basic
- Replacing, refer to FRONT INTERIOR LAMP -W1- BULB, "Basis"
- Front Passenger Reading Lamp Button -E458-
- Basic
- Common part with interior lamp/front reading lamp
- Front Passenger Map/Reading Lamp -W13-
- Basic
- Replacing, refer to FRONT READING LAMP -W13- / -W19- BULB, "Basis"
- Button
- Basic
- For the individual door contact switch
- Common part with interior lamp/front reading lamp
- Interior Lamps/Front Reading Lamps
- Vehicles without an eyeglass compartment
- Removal and installation, refer to INTERIOR LAMP/READING LAMP, FRONT, WITHOUT EYEGLASS COMPARTMENT
