Air Supply Unit, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the bracket and air supply unit. Refer to AIR SUPPLY UNIT WITH BRACKET, REMOVING AND INSTALLING .
NOTE:
Make Sure No Dirt Gets Into The Pressure Air System.
Clean The Area Before Removing Connecting Pieces For The Air Pipe Lines Or Other Components Of The Pressured Air System.
Seal Off Any Open Air Lines And Connections In The Pressure System Immediately With Plugs Or Cover Them.

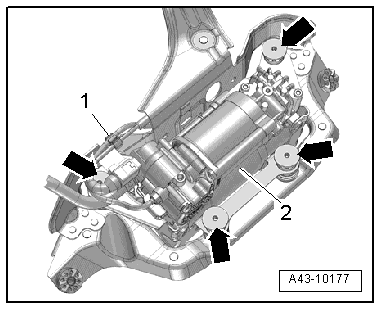

-- Loosen the air line and electric wire out of the clip -1-.
-- Remove the threaded sleeve -arrows- and the air supply unit -2-.
