Overview - Wheel Bearing Housing, AWD Vehicles And E-Tron

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

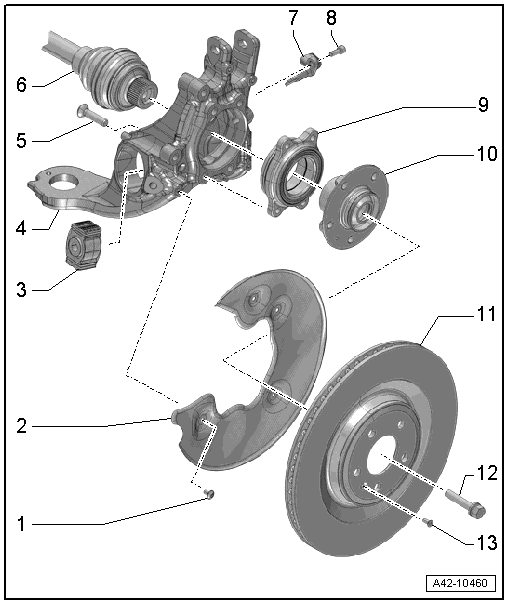

Fig 1: Wheel Bearing Housing, Awd Vehicles And E-Tron Exploded View

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 10 Nm
Cover Plate
- For the brake rotor
Bonded Rubber Bushing
- Always Replace. Refer to WHEEL BEARING HOUSING BONDED RUBBER BUSHING, REPLACING, AWD VEHICLES AND E-TRON .
Wheel Bearing Housing
- Removing and installing. Refer to WHEEL BEARING HOUSING, REMOVING AND INSTALLING, AWD VEHICLES, EXCEPT E-TRON .
Bolt
- 80 Nm +90° turn
- Always replace if removed
Drive Axle
- There are different versions. Refer to the Parts information.
- e-tron: CV joint instead of driveshaft
Rear Speed Sensor
- Left Rear ABS Wheel Speed Sensor -G46-
- Right Rear ABS Wheel Speed Sensor -G44-
Bolt
- Tightening specification. Refer to appropriate service information. .
Wheel Bearing
CAUTION:
- Avoid contaminating with dirt and damaging the seal when lifting, setting down/storing. .
- Wheel bearing unit, removing and installing. Refer to WHEEL BEARING UNIT, REMOVING AND INSTALLING, AWD VEHICLES, EXCEPT E-TRON .
- For servicing the wheel bearing unit. Refer to WHEEL BEARING UNIT, SERVICING .
Wheel Hub
CAUTION:
- Avoid contaminating with dirt and damaging the seal when lifting, setting down/storing. .
- Wheel bearing unit, removing and installing. Refer to WHEEL BEARING UNIT, REMOVING AND INSTALLING, AWD VEHICLES, EXCEPT E-TRON .
- For servicing the wheel bearing unit. Refer to WHEEL BEARING UNIT, SERVICING .
Brake Rotor
Bolt
- Tightening specification -Item 14- OVERVIEW - DRIVE AXLE.
Bolt
- Tightening specification. Refer to appropriate service information. .

Courtesy of AUDI OF AMERICA, LLC

The wheel bearing -1- must always face up.
Always set the wheel bearing down on the wheel hub -2-.

Never reach into the inside when lifting the wheel bearing.

Courtesy of AUDI OF AMERICA, LLC
Hold the wheel bearing only on the outside.

The same procedure also applies to the wheel bearing without a wheel hub.
