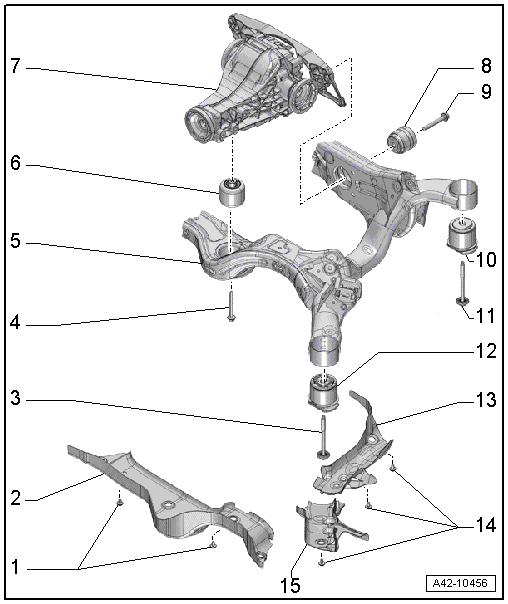

Overview - SUBFRAME, Vehicles With AWD
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Clip
- Depending on the date of manufacture
- Center Stone Chip Protection
- Depending on the date of manufacture
- Bolt
- 115 Nm + 90° turn
- Always replace if removed
- Bolt
- Tightening specification. Refer to FINAL DRIVE [For transmission(s) 0BK] .
- Subframe
- Subframe with attachments, removing and installing. Refer to SUBFRAME, REMOVING AND INSTALLING, AWD VEHICLES .
- Subframe, securing. Refer to SUBFRAME, SECURING, VEHICLES WITH AWD .
- Front Bonded Rubber Bushing
- Always Replace. Refer to REAR FINAL DRIVE FRONT BEARING, REPLACING, AWD VEHICLES .
- For the rear final drive mount
- Rear Final Drive
- Removing and installing. Refer to FINAL DRIVE [For transmission(s) 0BK] .
- Rear Bonded Rubber Bushing
- Always Replace. Refer to REAR FINAL DRIVE REAR BEARING, REPLACING, AWD VEHICLES .
- For the rear final drive mount
- Bolt
- Tightening specification. Refer to FINAL DRIVE [For transmission(s) 0BK] .
- Rear Bonded Rubber Bushing
- Always replace on both sides.
- Always Replace. Refer to SUBFRAME REAR BEARING, REPLACING, VEHICLES WITH AWD .
- For the subframe mounting
- There are different versions.For the correct allocation. Refer to the Parts information.
- Oil on the hydraulic bonded rubber bushing is a sign of wear.
- Bolt
- 115 Nm + 90° turn
- Always replace if removed
- Front Bonded Rubber Bushing
- Always replace on both sides.
- Always Replace. Refer to SUBFRAME FRONT BEARING, REPLACING, VEHICLES WITH AWD .
- For The Subframe Mounting
- There are different versions. For the correct allocation. Refer to the Parts information..
- Oil on the hydraulic bonded rubber bushing is a sign of wear.
- Left Stone Chip Protection
- Depending on the date of manufacture
- Clip
- Depending on the date of manufacture
- Left Front Stone Chip Protection
- Depending on the date of manufacture

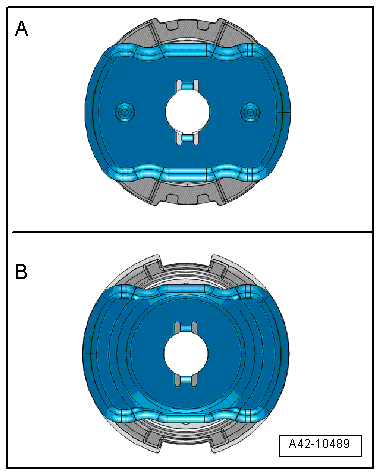

A - Hydraulic Bonded Rubber Bushing
B - Conventional Bonded Rubber Bushing
