Rotor Unit, Removing And Installing: Installing

WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

-- Always clean the bearing seats and bolting surfaces for the rotor unit.

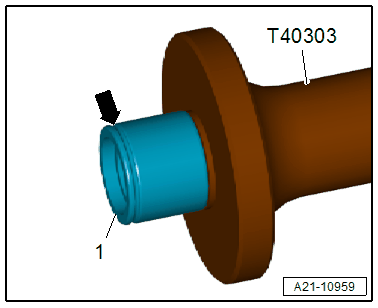

-- Place the new needle bearing on the :T40303 .

The groove -arrow- points to the compressor housing.
The seal in the needle bearing points to the tool.

CAUTION:

There is a risk of thinning the grease in the needle bearing from applying too much engine oil.

Only apply engine oil very thinly.

-- Coat the outer edge (sleeve) of the needle bearing with engine oil.

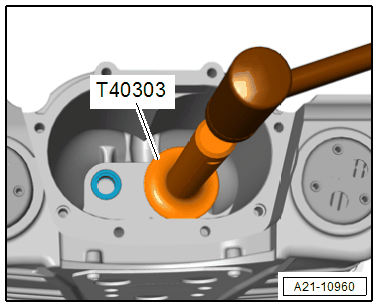

-- Place the needle bearing with the :T40303 straight in the compressor housing hole and drive in all the way with a large plastic mallet.

Courtesy of AUDI OF AMERICA, LLC

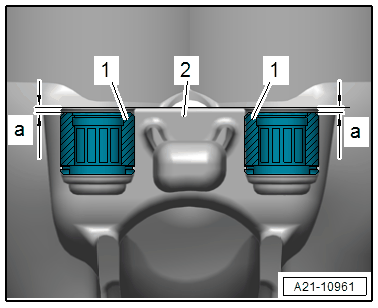

-- After driving in the needle bearing -1- check its seating in the compressor housing -2-.

Courtesy of AUDI OF AMERICA, LLC

Dimension -a- = 1.5 mm

-- If required drive in the needle bearing further.

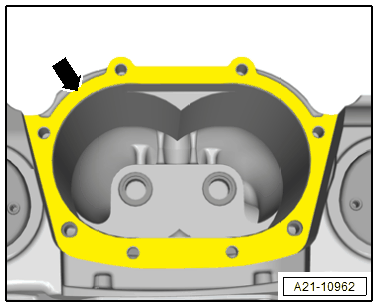

-- Apply a thin coat of sealant -arrow- on the rotor unit sealing surface for the compressor housing.

Courtesy of AUDI OF AMERICA, LLC

-- Carefully insert the rotor unit in the compressor housing.

-- Pay attention that the supercharger housing rotors inner surfaces are not damaged and that the rotor axles are guided into the needle bearing.

-- Install the operating head. Refer to OPERATING HEAD, REMOVING AND INSTALLING .

-- Install the solenoid coupling. Refer to SOLENOID COUPLING, REMOVING AND INSTALLING .

-- Check the supercharger for leaks. Refer to SUPERCHARGER, CHECKING FOR LEAKS .
