Operating Head, Removing And Installing: Installing

WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Replace the operating head gaskets after disassembly.

Insert the self-locking bolts or bolts with sealant. Refer to the Parts information.

-- Clean any oil or grease off the sealing surfaces.

-- Always clean the threaded holes with a thread tap before assembling.

-- Fill the oil for the supercharger drive in the bearing cap.

NOTE:

The container holds the exact amount. It is not necessary to check the oil level later.

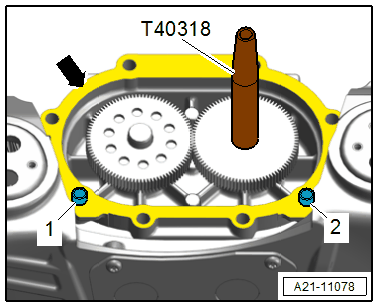

-- Apply sealant thinly on the sealing surface -arrow- for the operating head on the rotor unit and place the :T40318 on the driveshaft as shown.

Courtesy of AUDI OF AMERICA, LLC

-- Place the operating head with a new seal on the rotor unit, at the same time pay attention to the alignment sleeves -1 and 2-.

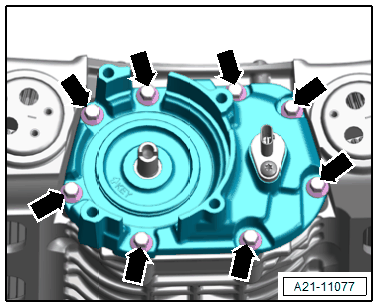

-- Tighten the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

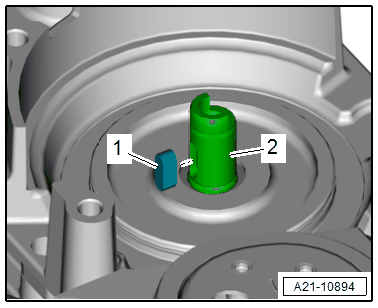

-- Insert the coil spring -1- in the driveshaft -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Install the solenoid coupling. Refer to SOLENOID COUPLING, REMOVING AND INSTALLING .

Installation is performed in reverse order of removal, while noting the following:

-- Check the supercharger for leaks. Refer to SUPERCHARGER, CHECKING FOR LEAKS .

-- Install the coolant pipes to the supercharger. Refer to COMPRESSOR COOLANT PIPES, REMOVING AND INSTALLING .
