Removal And Installation

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the floor console. For additional information, refer to Instrument Panel and Console .

2.
1. 1.

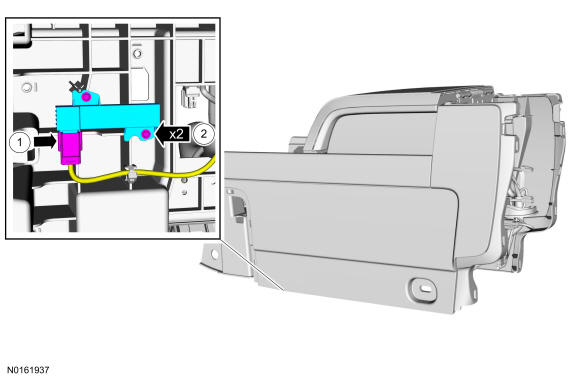

  Disconnect the PATS antenna electrical connector.
1. 2.

  Remove the screws and the PATS front antenna.

GFD137087

Courtesy of FORD MOTOR COMPANY

3.

To install, reverse the removal procedure.
