Removal And Installation

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Left Hand (LH) side shown, RH side similar.

1.

Remove the fender splash shield. For additional information, refer to Fender Splash Shield .

2.

Remove the front bumper cover-to-fender bolts.
- To install, tighten to 10 Nm (89 lb-in).

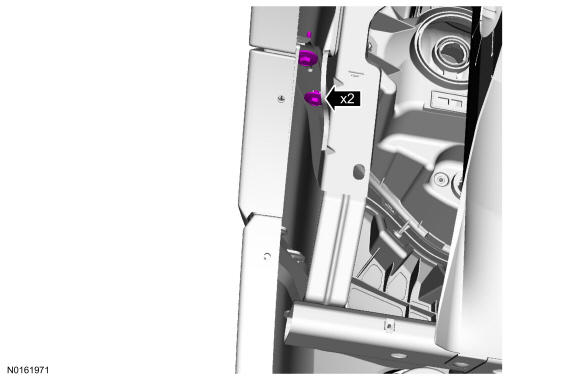

GFD137107

Courtesy of FORD MOTOR COMPANY

3.

Remove the headlamp assembly. For additional information, refer to Exterior Lighting .

4.

Remove the fender-to-radiator support bolt.
- To install, tighten to 9 Nm (80 lb-in).

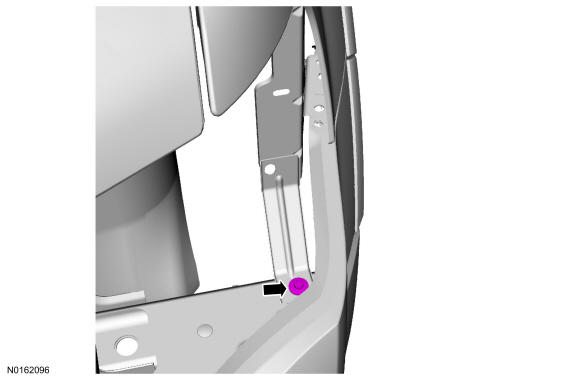

GFD137108

Courtesy of FORD MOTOR COMPANY

5.

Remove the lower fender bolts.
- To install, tighten to 12 Nm (106 lb-in).

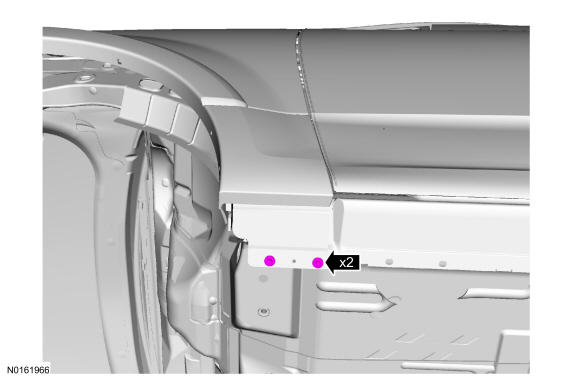

GFD137109

Courtesy of FORD MOTOR COMPANY

6.

Using a knife, cut the foam sealant between the fender and body.

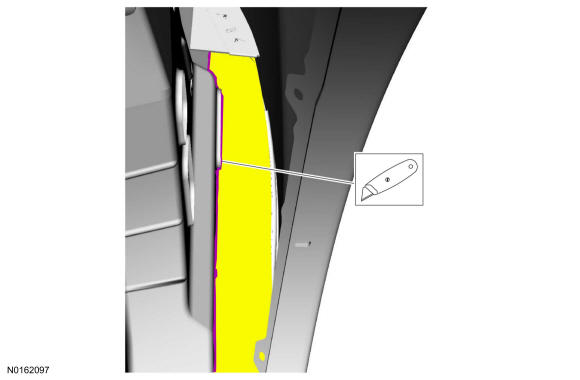

GFD137110

Courtesy of FORD MOTOR COMPANY

7.

Remove the inner fender bolts.
- To install, tighten to 12 Nm (106 lb-in).

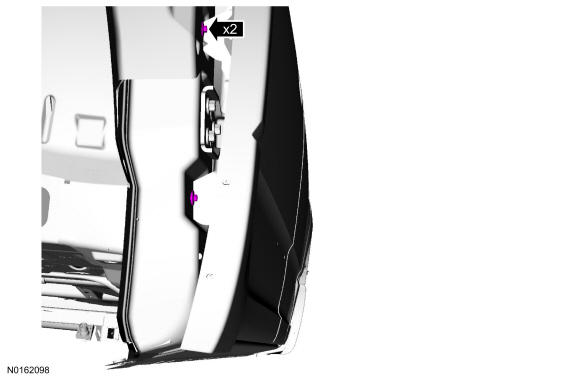

GFD137111

Courtesy of FORD MOTOR COMPANY

8.

Remove the cowl panel grille. For additional information, refer to Cowl Panel Grille .

9.

Remove the upper fender bolts and remove the fender.
- To install, tighten to 9 Nm (80 lb-in).

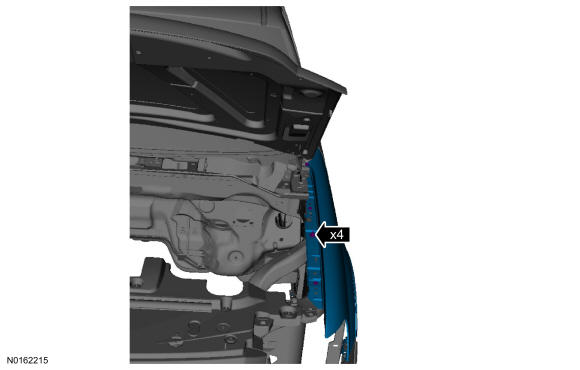

GFD137112

Courtesy of FORD MOTOR COMPANY

10.

NOTE: This step is only necessary when installing a new component.

Remove the push pins and the expandable foam baffle.

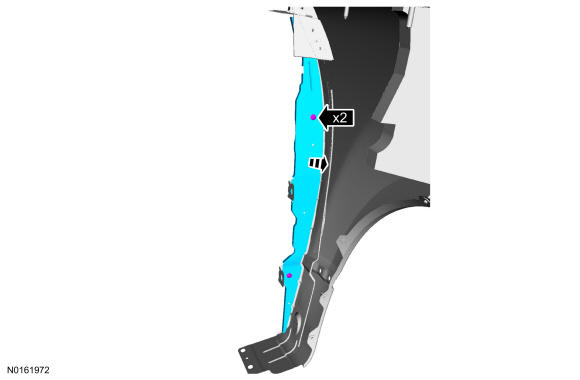

GFD137113

Courtesy of FORD MOTOR COMPANY

11.

To install, reverse the removal procedure.
