Insulation, Removing And Installing
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

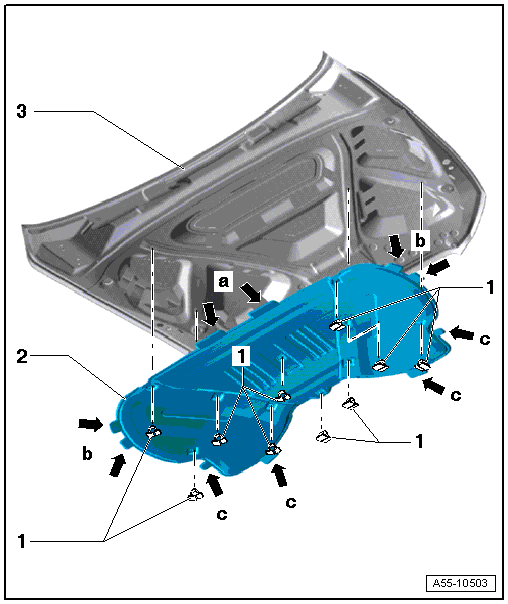

- Clip
- Hood Lining
- Installation:
-- Slide the lining over the tabs on the rear edge into the holes provided on the inner panel.
-- Slide the tabs on the front edge and the sides into place.
-- The clips must engage audibly when pressing in.
- Installation:
- Door
- Clip
